DLIM-4212 Industry 4.0 Training System

Model: DLIM-4212

1. Working power supply: AC220V ± 10%, 50Hz,

2. Rated power: 2KW

3. Floor area size: overall layout size: about 2100 * 2100 * 1780mm (L) × W × H )

4. Working environment: temperature 5 ℃ - + 40 ℃, relative humidity < 85% (25 ℃)

5. Safety protection: it has multiple protections of short circuit, overload, audible and visual alarm light and emergency stop

6. PLC: Siemens series

Inquire Now

Details Introduction

Equipment Overview

The industry 4.0 training equipment is required to closely focus on the latest technology development trend of "Industry 4.0", and integrate "Internet +", "Smart Sensor", "PLC Control Technology", "Smart Electromechanical Equipment", "Digital Twin Simulation", "Logistics Technology", "IT Technology and safety" and other advanced technologies can enable students from engineer university,vocation training institution, training schools to learn and master the latest knowledge and skills of Industry 4.0.

The lab Educational System is developed in accordance with the future industrial intelligent manufacturing development model and the WorldSkills Competition, the "Industrial 4.0 Application System"project of the BRICS National Vocational Skills Competition, and technical standards. The industry 4.0 lab teaching platform is not only a training platform for industry 4.0 training but also a typical application platform for intelligent manufacturing.

Features

1. Device selection: the main devices used in the platform are selected from international and domestic well-known brands with advanced technology and high market share.

2. Standardization: the training platform shall be developed and tested in accordance with relevant national safety standards and specifications for mechanical and electrical equipment.

3. Modular design conforms to the teaching law and students' cognitive law. Teachers and students can choose different module combinations for practice according to the needs of teaching and competition.

4. Personalized Customization: customers can place personalized orders through the industrial Internet cloud platform or app, and select the required product type and product appearance (box cover and bookmark color)

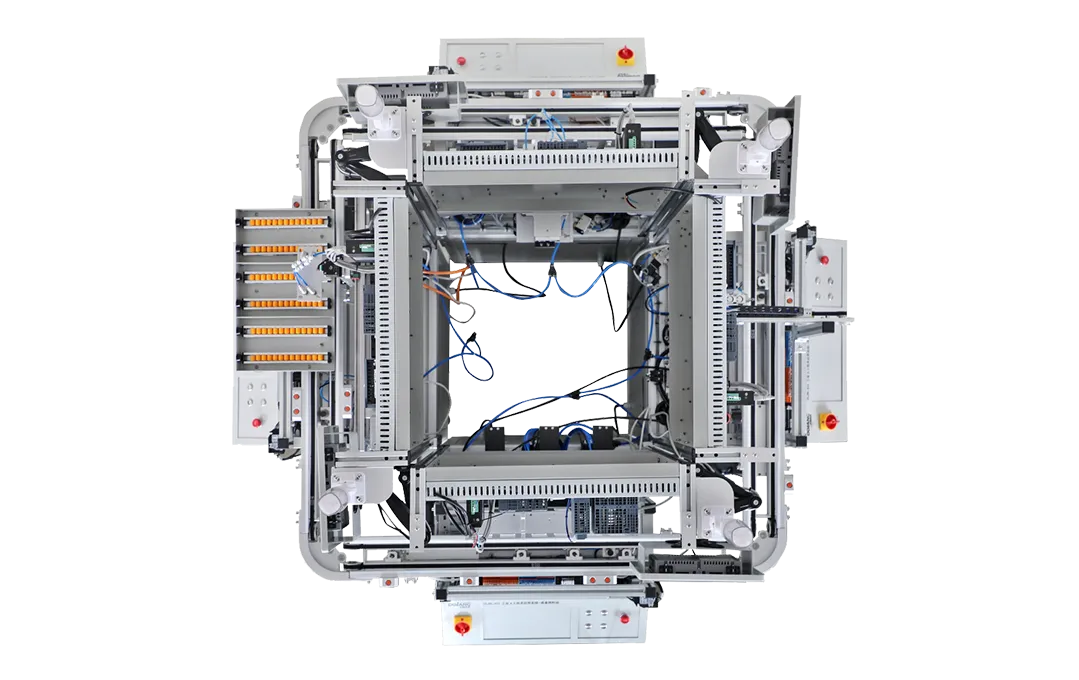

5. Annular layout: the whole equipment is arranged in the form of annular conveyor belt. Four pallets are arranged on the conveyor belt. The pallets can be recycled as material transportation carriers. Through the arrangement and combination of four proximity switches and the specific structural design of the tray, the recognition of 15 tray features can be realized.

6. Fieldbus: the field control equipment has communication function and constitutes the bottom control network of the plant. The equipment has interoperability and interchangeability. The automatic control equipment and system are connected to the information network to provide more flexible system integration and data processing mode.

7. Industry 4.0 intelligent manufacturing technology: apply information and communication technology to the production and manufacturing process, practice the application of industrial Internet technology, and realize the digitization and data sharing of system information.

Training Projects

- PLC and RFID MOUDLEBUS communication;

- Profinet communication between PLC and PLC ;

- Communication between MES and PLC;

- Application of HMI and stepping;

- Application of bus communication technology;

- Application of industrial automation network;

- Application of PLC technology;

- Application of motor drive technology;

- Application of motion control system;

- Digital 3D model construction and layout;

- PLC virtual debugging;
