Industry 4.0 Training System
Model: DLIM-102MA
1. Working power supply: AC220V±10%, 50HZ.
2. Dimensions: (length x width x height) 12000mmX5000mmX2200mm (overall layout size)
3. Working environment: temperature -10°C-+40°C, relative humidity <85% (25°C).
4. Safety protection device: emergency stop button.
5. PLC: Siemens S7-1200 series.
6. Four-axis industrial robot
7. Six-axis industrial robot
Details Introduction

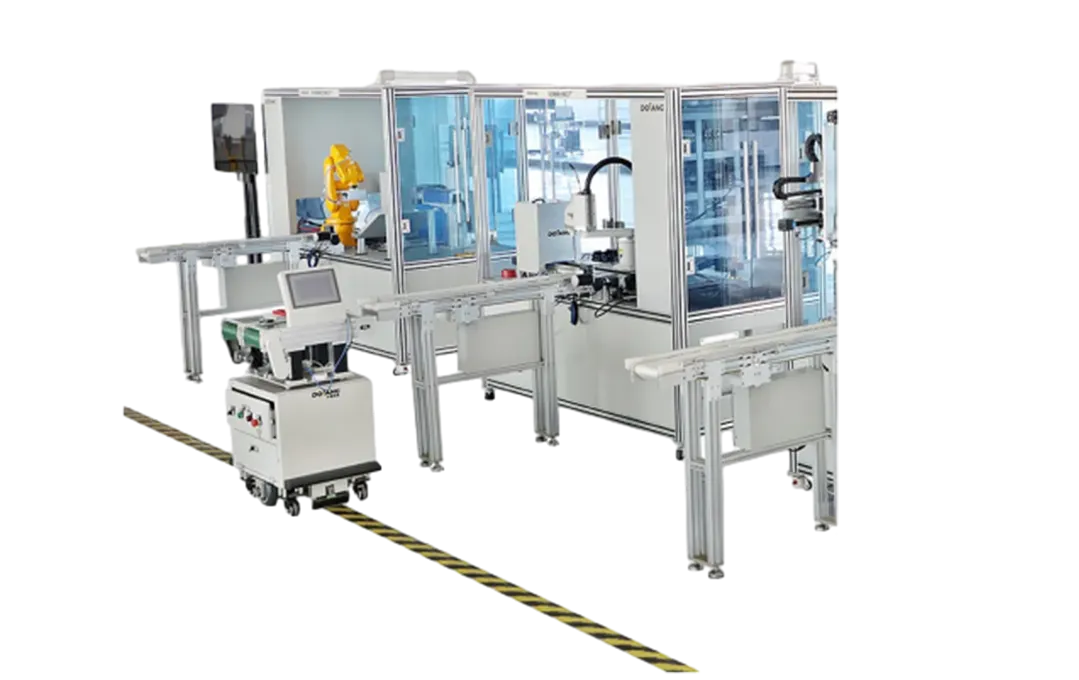

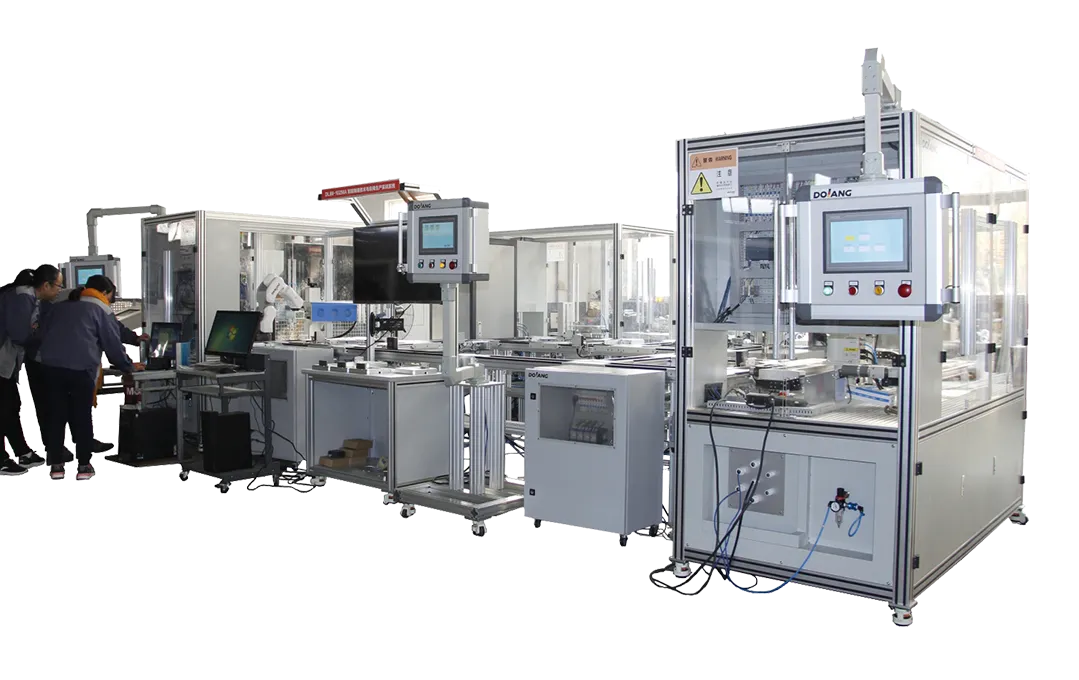

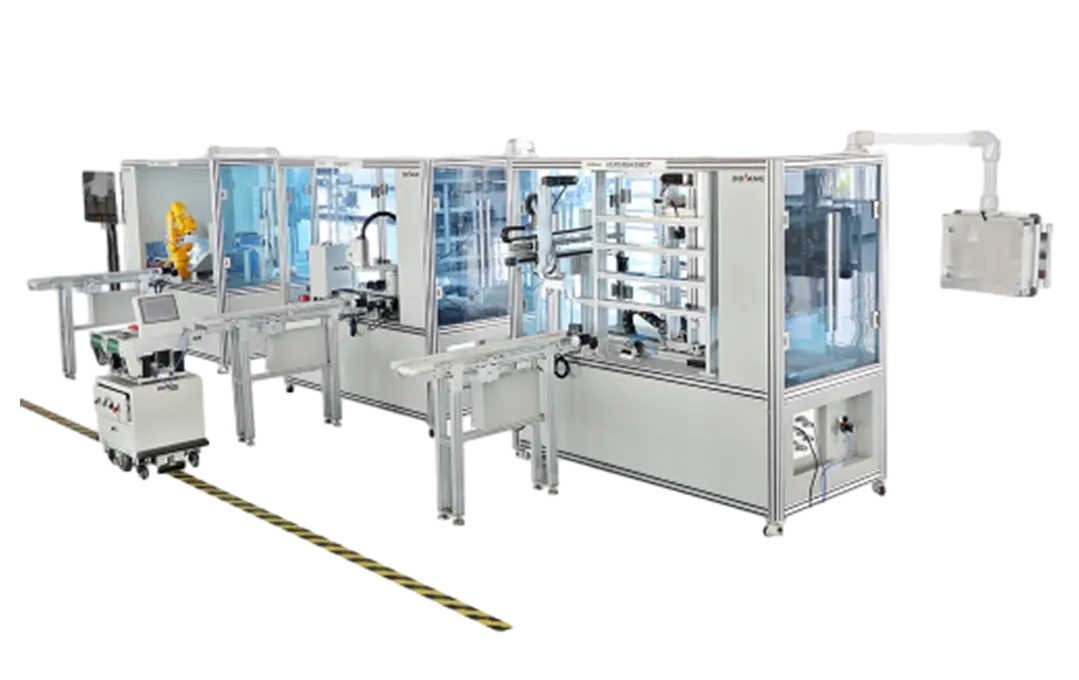

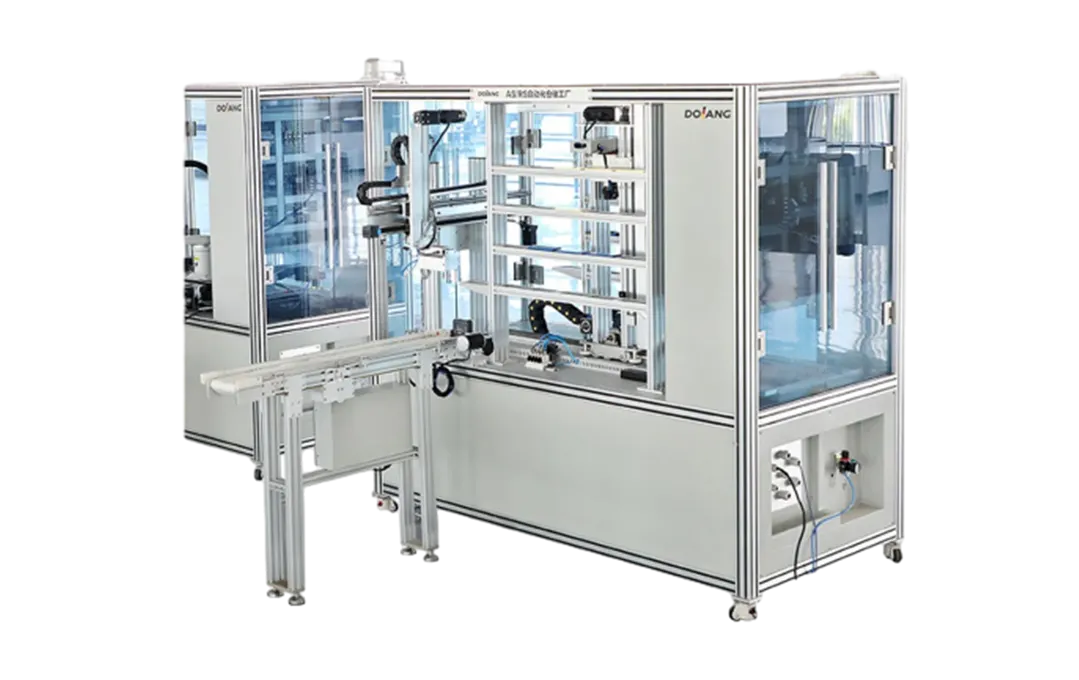

Equipment Overview
The Industry 4.0 Training System is mainly used to demonstrate the production and assembly process of the industrial automation production line, including storage and feeding unit, four-axis robot sorting unit, six-axis industrial robot assembly unit, transportation unit, and MES system unit.
The vocational teaching system can be used for sensor training, including photoelectric sensors, fiber optic sensors, inductive sensors, capacitive sensors, Hall sensors, etc. commonly used in industrial automation. On this device, students can get to know each sensor and master how to use each sensor.
The system of engineer training equipment can be used for the training of image detection technology. Trainees can learn about image detection equipment, master the use of image detection equipment, and practice the programming of image detection software.
The system of vocational training equipment can be used for motor drive technology training, including DC motors, stepping motors and drivers, servo motors and drivers, etc. Trainees can learn about motors and master the use of each motor on this device.
The system can be used for industrial robot training, system maintenance and fault detection technical training. This part focuses on the content and methods of daily maintenance of mechatronic equipment, as well as common fault analysis and troubleshooting methods.
Sensor technology, motor technology, pneumatic technology, control technology, servo drive technology, and communication technology are usually used in automatic lines. The above key technologies are described below with the intelligent manufacturing technology and application system as the carrier.
Parameter
- Four-axis industrial robot:
J1 axis: arm length: 225mm; rotation range: ±132º; repositioning accuracy: ±0.01mm
J2 axis: arm length: 175mm; rotation range: ±141º; repositioning accuracy: ±0.01mm
J3 axis: stroke 150mm; repositioning accuracy: ±0.01mm;
J4 axis: rotation range: ±360º; repositioning accuracy: ±0.01mm
Rated/maximum load: 1Kg/3Kg
Encoder module: input 2-channel differential input incremental encoder
- Six-axis industrial robot:
J1 axis: Maximum range of motion: ±170º; Maximum speed: 450°/S
J2 axis: Maximum motion range: ﹣135º~﹢80°; Maximum speed: 380°/S
J3 axis: Maximum motion range: ﹣136º~﹢270°; Maximum speed: 520°/S
J4 axis: Maximum range of motion: ±190º; Maximum speed: 550°/S
J5 axis: Maximum range of motion: ±120º; Maximum speed: 550°/S
J6 axis: maximum range of motion: ±360º; maximum speed: 1000°/S; maximum working radius: 541mm
Repositioning accuracy: ±0.02mm
Training Projects
1. Freely design the graphic pattern to be processed
2. Support TrueType fonts, single-line fonts (JSF), SHX fonts, dot matrix fonts (DMF)
3. One-dimensional barcode and two-dimensional barcode.
4. Flexible variable text processing, changing text in real time during processing, can directly read and write text files dynamically files and Excel files.
5. Text data can be read directly through the serial port.
6. Text data can be read directly through the network port.
7. There is also an automatic text segmentation function, which can adapt to complex processing situations.
8. Powerful node editing function and graphic editing function, which can perform curve welding, cutting and intersection calculation
9. Support up to 256 pens (layers), different processing parameters can be set for different objects
10. Compatible with common image formats (bmp, jpg, gif, tga, png, tif, etc.)
11. Compatible with commonly used vector graphics (ai, dxf, dst, plt, etc.)
12. Commonly used image processing functions (grayscale conversion, black and white image conversion, dot processing, etc.), can process 256-level grayscale images
13. Powerful filling function, support ring filling
14. A variety of control objects, users can freely control the system to interact with external devices
