Model: DLDZ-SD301 Digital Circuit Experiment Box
1. Power input: single-phase three-wire AC220V±10% 50Hz
2, power output: DC ± 5V continuously adjustable, DC ± 220V,
DC +5V- +27V continuously adjustable DC power supply
3. Dimensions: 460*360*110mm
Electronics Training Equipment
Model: DLDZ-SD301 Digital Circuit Experiment Box
1. Power input: single-phase three-wire AC220V±10% 50Hz
2, power output: DC ± 5V continuously adjustable, DC ± 220V,
DC +5V- +27V continuously adjustable DC power supply
3. Dimensions: 460*360*110mm
Details introduction
Overview
The Digital circuit experiment box is the basic electronics experiment teaching instrument, the digital experiment training model is developed based on the electronic technology training course in vocational schools, engineering universities and colleges etc.
Configuration

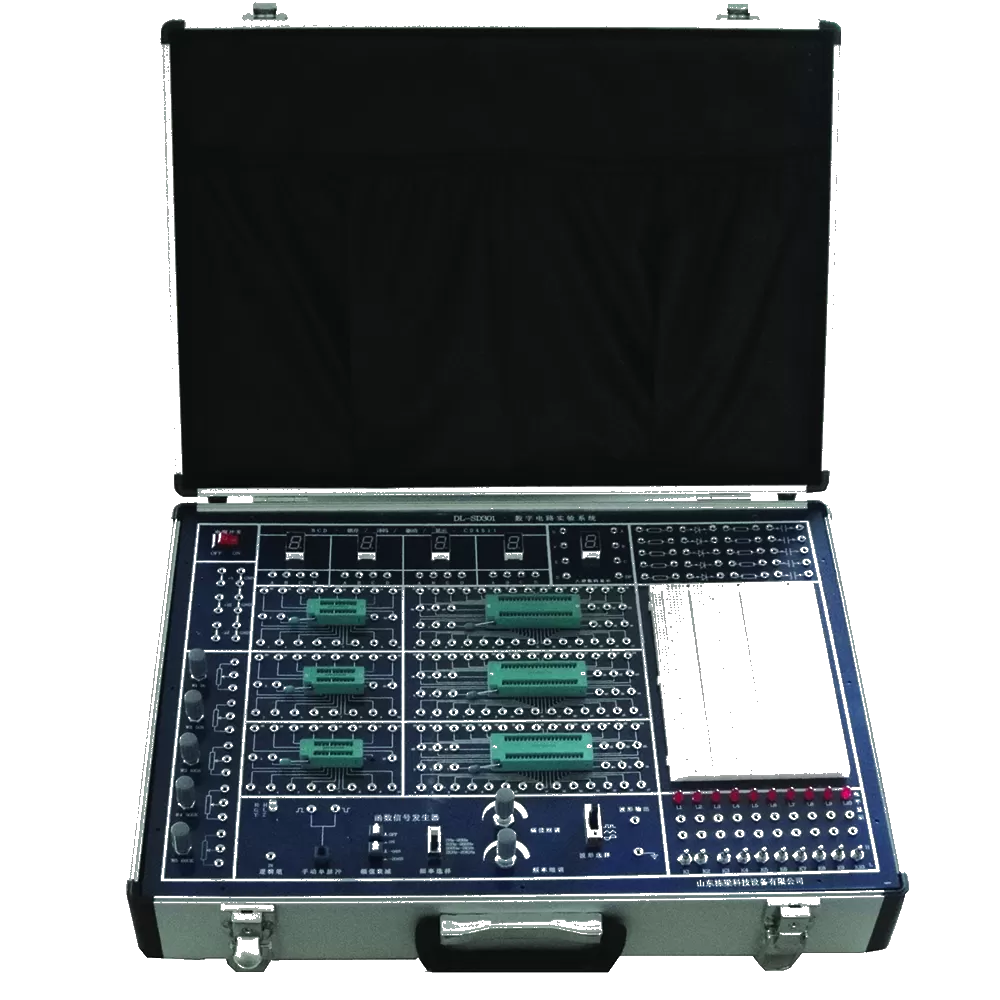

DLDZ-SD301 Digital circuit experiment system is composed of power connector, general circuit unit, common circuit unit, bread board and IC (lock) socket. The common circuit including 8421BCD code LED display,1 bit LED, clock circuit, manual single pulse circuit, adjustable continuous pulse generator,10 bit binary system level show switch, decade level input switch, logical pen and potentiometer etc.
Training projects
- Experiment of Electronics Transistor switch character, limiter and clamper
- Experiment of TTL integration logic gate circuit parameter test
- Experiment of CMOS integration logic gate circuit parameter test
- Experiment of Gate circuit logic function and test
- Experiment of Combinational logic circuit(half-adder, full-adder and logical operation）
- Experiment training of trigger R-S、D、J-K
- Experiment of three state output trigger and latch
- Training of A/D, D/A conversion circuit experiment
- Training of Sequence circuit test
- Training of Counter and register application
- Training of Decoder and date selector application
- Demostrate of Wave form emerge and monostable trigger
- Demostrate of Use gate circuit produce pulse signal—free running multivibrator
- Demostrate of Monostable trigger and Schmitt trigger—pulse delay and wave shaping circuit
- Transistor switch character, limiter and clamper
- TTL integration logic gate circuit parameter test
- CMOS integration logic gate circuit parameter test
- Gate circuit logic function and test
- Combinational logic circuit(half-adder, full-adder and logical operation）
- Trigger No.1 R-S、D、J-K
- Trigger No.2 three state output trigger and latch
- Sequence circuit test
- Counter and register application
- Decoder and date selector application
- Wave form emerge and monostable trigger
- Use gate circuit produce pulse signal—free running multivibrator
- Monostable trigger and Schmitt trigger—pulse delay and wave shaping circuit
- 555 time-base circuit and application.
- D/A、A/D converter
