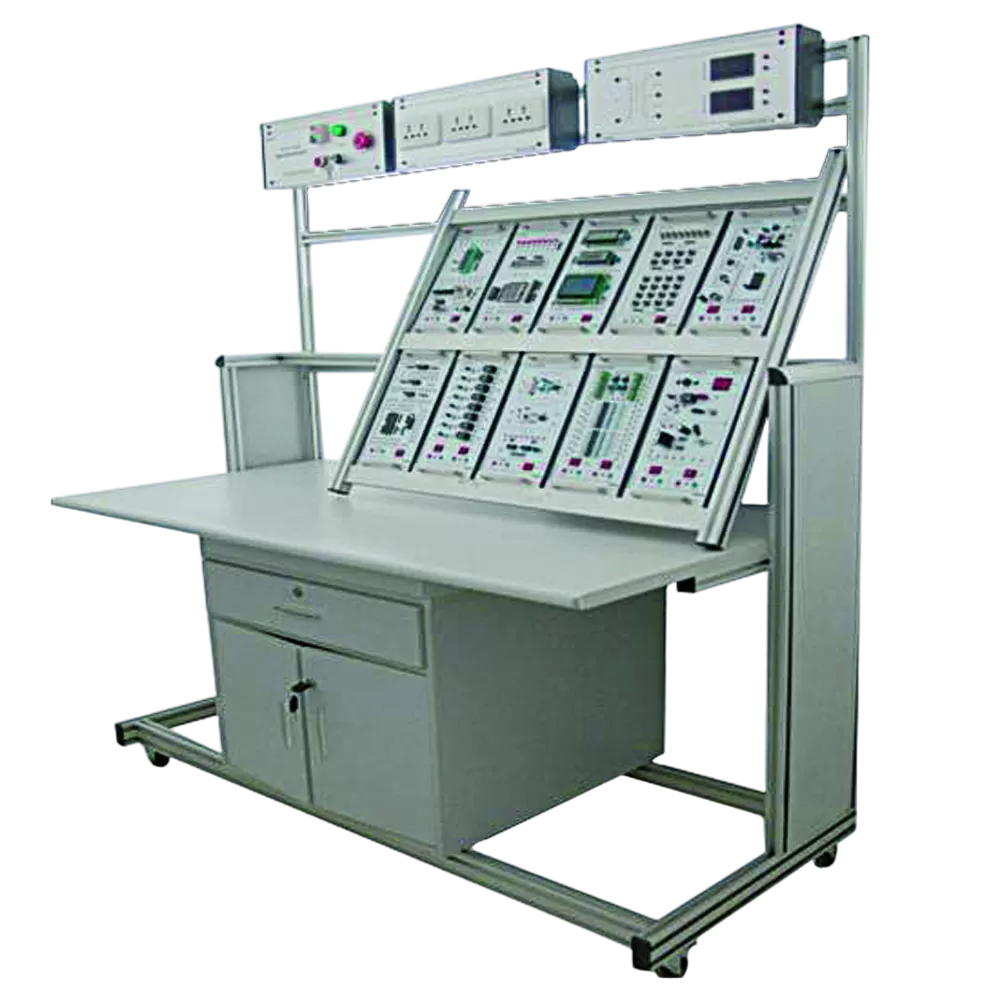

Model: DLDP-YD510 MCU Training Assessment System
Input power supply: Single phase three wire AC220V±10%, 50Hz；
Output power supply: DC±1.25～±30V/0.8A；
DC±5V/1A、DC±12V/1A；
DC 24V±5％/1.5A；
Capacity≤1KVA
Dimension : 2150×1042×1680mm（L×W×H）
Electronics Training Equipment
Model: DLDP-YD510 MCU Training Assessment System
Input power supply: Single phase three wire AC220V±10%, 50Hz；
Output power supply: DC±1.25～±30V/0.8A；
DC±5V/1A、DC±12V/1A；
DC 24V±5％/1.5A；
Capacity≤1KVA
Dimension : 2150×1042×1680mm（L×W×H）
Details introduction
Overview
DLDP-YD510 MCU training equipment is modular type Micro controller unit teaching model, including more than 10 kinds of application training modules, covers various microcontrollers and common peripheral equipments. The MCU application model suits for electronics engineer training lab of vocational university, engineering college, vocational institution, seconday and high vocational school etc.
Configuration
The microcontroller teaching system compose of MCU Training platform, Power control module, Host module, Sensor connection module, Temperature sensor module, AC and DC motor module, Material handling module etc.
Training projects
- Training of buzzer
- Training of digital tube display
- Teaching of dot matrix
- Trainng of 1602/12232/ 12864 liquid crystal
- Teaching of PS/2 interface experiment
- Demostrate of rotary encoder
- Demostrate of query button
- Training of array button
- Training of 8-bit switch experiment
- Training of parallel DAC, serial DAC, serial ADC etc
