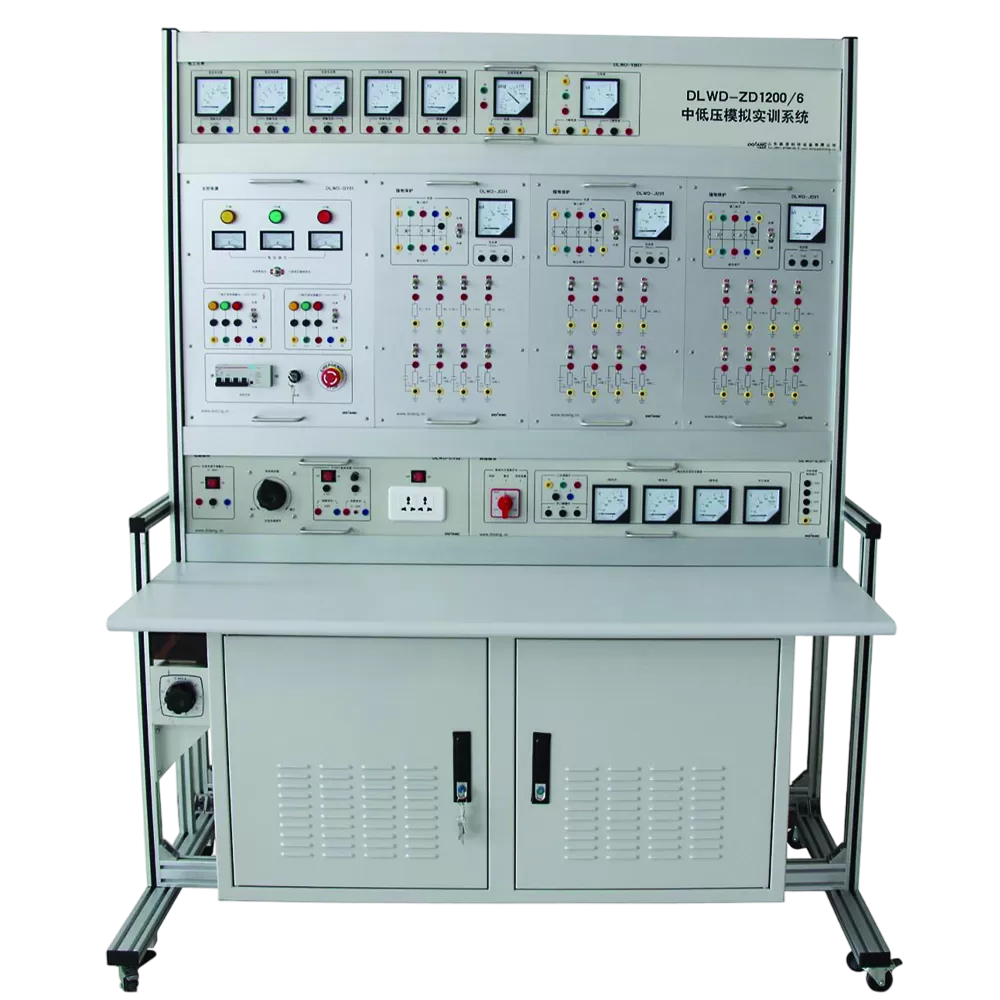

Model: DLWD-ZD1200/6 Medium and Low Voltage Simulation Training System
1．AC power :Three phase AC380V±5% 50Hz;
2．Output power: AC 220V adjustable power, DC 220V power, DC220V adjustable power
3．Temperature:-10℃～40℃
Electrical Training Equipment
Model: DLWD-ZD1200/6 Medium and Low Voltage Simulation Training System
1．AC power :Three phase AC380V±5% 50Hz;
2．Output power: AC 220V adjustable power, DC 220V power, DC220V adjustable power
3．Temperature:-10℃～40℃
Details introduction
Overview
DLWD-ZD1200/6 power voltage training equipment is mainly developed for teaching courses such as power voltage transformation training, power voltage regulation training, and grounding protection training in power supply and distribution lines. This electrical training device is suit for TVET vocational school students' understanding of transformers, voltage regulators, current transformers, voltage transformers, industrial measuring instruments, switching components characteristics and wiring principles.
Technical Features
This power lab teaching equipment is composed of main control power supply module, , equipment transfer module, electrical instrument module and grounding protection module etc. The main control power supply module provides two adjustable AC0-450V three-phase five-wire power supply; the equipment transfer module provides the wiring and voltage display of three-phase five-column voltage transformer and arc suppression coil; the electrical instrument can provide the measurement of DC voltage and current, AC voltage, current, power, power factor, frequency, The ground protection module is mainly used for ground protection test training.
Training projects
- DC voltage, ammeter data measurement training
- AC voltage, current, power, power factor, frequency measurement training
- Ground protection training
- Three phase transformer experiment training
- Three phase voltage regulator experiment training
- Three-phase five-pole voltage transformer demonstrate training
- Zero sequence current transformer training
