Electrical Training Equipment
Model: DLWD-XD35 Modern Electrician Technical Skills Training and Assessment System
1.Working power: 3-phase five wiring :AC380V±10%, 50Hz
2.Maerial: Cabinet steel structure
3. General power control, with leakage protection function
4. Capacity:≤1.5KVA
Details introduction
Overview

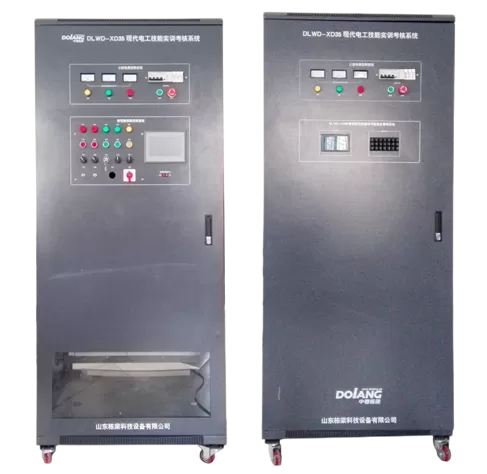

The electrician technical training system is a standard electrical control teaching workbench, The front of the electric cabinet mainly completes the electrician electrical training and electric tractor training, and the back of the electric cabinet is the assessment system of the machine tool circuit, which can be combined with the machine tool circuit hanging box to complete the machine tool troubleshooting training experiment. It’s mainly used to introduction to maintenance electrician, use of commonly used electrical tools and instruments, installation of indoor circuits, installation and maintenance of basic motor control circuits, disassembly, assembly, debugging and fault handling of three-phase asynchronous motors etc. based on its features, it’s one ideal teaching unit for electronics lab training.
Technical Features
The industrial electric control cabinet is double-sided design, The operation part and control part are arranged separately. The front of the cabinet door is equipped with a three-phase power display area, power supply operation area, and button switch operation area. The back of the cabinet door is equipped with power outlet area and an outlet terminal of the button switch to facilitate contact with the control part.
Training projects
- Three-phase asynchronous motor contactor self-locking control circuit
- Y-△ start automatic control circuit
- Three-phase asynchronous motor forward and reverse control circuit with contactor interlock
- Three-phase asynchronous motor direct start, stop control circuit connection
- Double interlocking three-phase asynchronous motor forward and reverse control circuit
- Radial drilling machine electrical control circuit
- Wiring, faults and maintenance of C620 lathe machine control circuit
- The operation of the V20 inverter BOP panel on the motor
- Forward and reverse motor control experiment of V20
