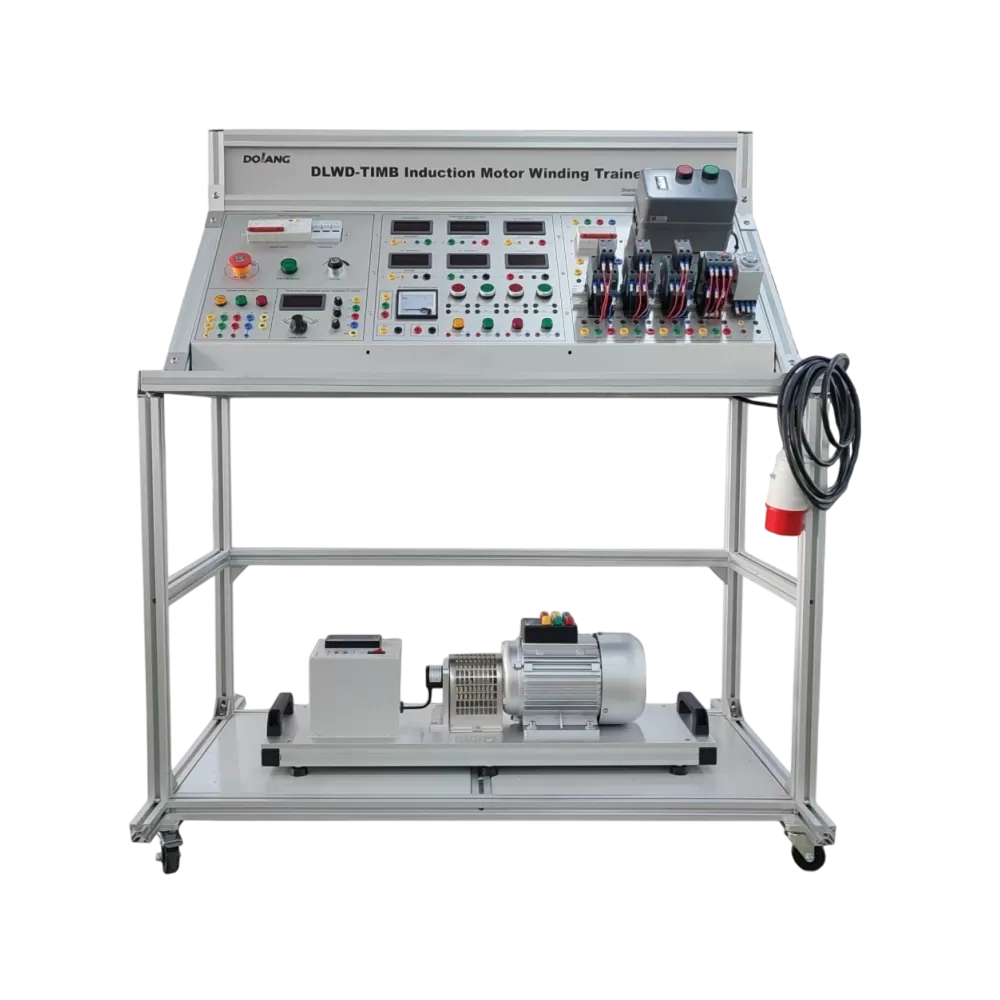

Model: DLWD-TIMB Induction Motor Winding Trainer
1) Input voltage: three phase five wire system 380V ± 10% 50Hz
Three phase adjustable power supply ac0-420v, 1.5kw
2) Working environment: the ambient temperature range is - 5 ~ 40 ℃
3) Total power control: with leakage protection function, when the leakage current reaches 30mA, the protection device will act.
Details introduction
Overview
The Electrical machine winding training equipment is one newly designed simulation model for electrical machine training. The engineer training model is composed of three-phase induction motor, circuit control part, instrument detection part and other basic parts which is required for engineer technical training. The TVET control panel is carved with aluminum oxide plate, the component identification is printed on the panel with clear silk screen; the component is embedded on the front panel, all wiring is led to the 4mm safety test terminal, and the engineering laboratory is connected with K4 banana safety test line.
Technical Features
1) The TVET technical training equipment design is reasonable, the electrical machine teaching workbench use is simple and convenient; the teaching equipment is small and easy to move.
2) The lead out terminals of the motor are connected to the safety terminals, which is convenient for wiring and safe for use.
3) All the components are silk screen printed on the front panel, intuitive and generous.
4) The didactic teaching equipment is equipped with leakage protection, emergency stop, overload, overcurrent and other multiple personal safety protection
Training projects
-Direct starting of three phase asynchronous motor
- Starting of three phase asynchronous motor starter
- Self locking starting of three phase asynchronous motor
-Forward and reverse control of three phase induction motor
- Experiment on speed regulation of three phase asynchronous motor by voltage regulator
-Star delta conversion experiment of three phase asynchronous motor
-Experiment on start stop control of three phase asynchronous motor in different places
-Electrical parameter measurement
