Electrical Training Equipment

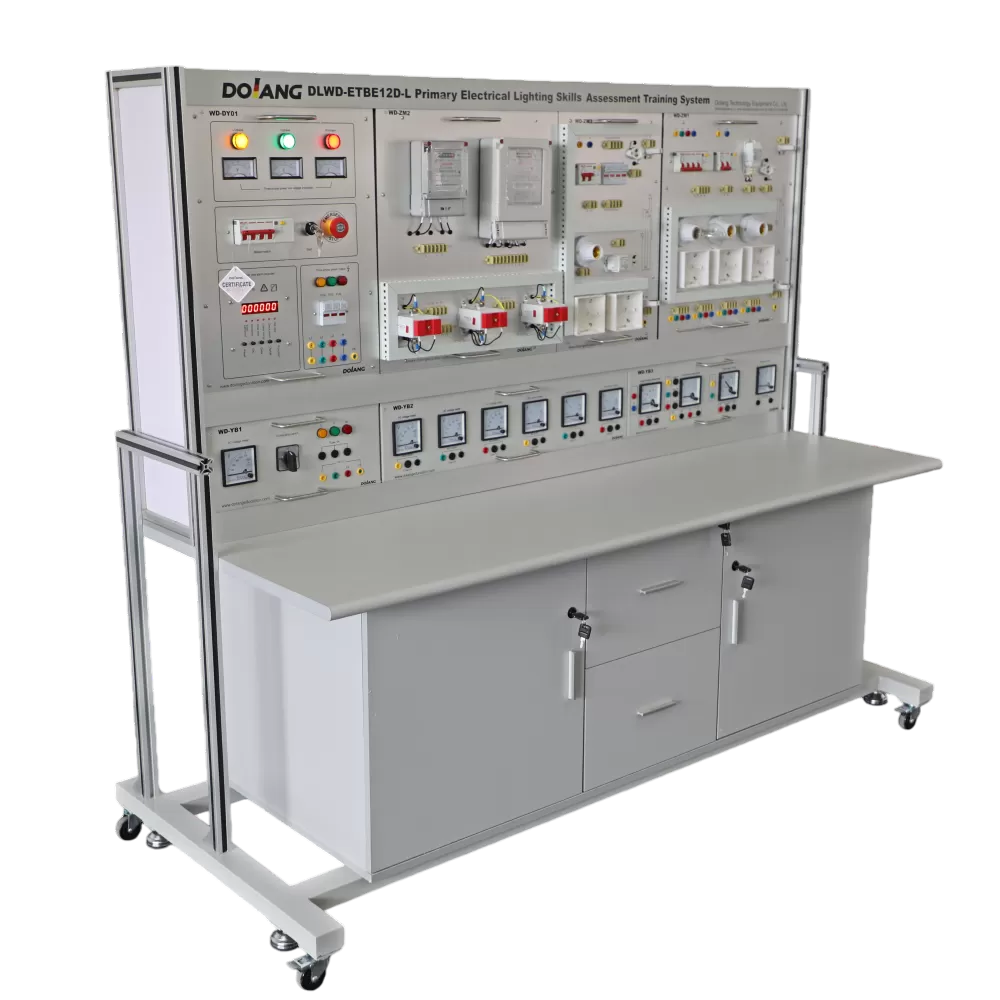

Model: DLWD-ETBE12D-L Primary Electrical Lighting Skills Assessment Training Device
1. Input power: Three phase five wire 380V±10% 50HZ
2. Working environment: Ambient temperature range -5～40℃
3. Capacity:
AC power supply：＜1.5KVA
DC excitation power supply：＜0.5A
Armature power：＜2A
4. Dimension: 1810x720x1620mm (L*W*H)
Details introduction
Overview
The Primary lighting training equipment is designed based on the teaching of conventional lighting circuits and outdoor lighting lines in vocational schools like university lab, vocational colleage training lab etc. Practical operation of electrical control circuit and practical electronic circuit can be carried out listed in the teaching material of “Lighting Circuit Foundation Installation”, “ Lighting Control Circuit” can make students' operation skills get good exercise and improvement. The TVET technical training set not only can be used as the practical teaching for vocational school students, but also is an ideal skills training equipment for assessing primary and intermediate maintenance electrician skills.
Technical Features
The lighting training device provide assessment skills training required for low-voltage electrical, content and standards of motor and relay control circuit. Based on its modular training module, it can meet the occupation skill appraisal institute of senior maintenance electrician skills assessment of the relevant requirements.
Training projects
- Demostrate training of Switch control socket and lamp
- Demostrate training of Two dual double control switches control a light
- Demostrate training of Three switches control a light
- experiment training of sound control switch control incandescent lamp
- Measurement of single-phase watt hour meter
- Connection circuit of single-phase electric energy meter through mutual inductor
- Wiring circuit of AC voltmeter and AC ammeter
- Measuring three-phase voltage with universal change-over switch
- wiring of three phase power factor meter
- Wiring diagram of three-phase four wire watt hour meter
- Wiring diagram of three-phase four wire electric energy band transformer
