1. Input power: 380V±10% 50Hz; Three-phase, five wires
2. Environment: Ambient temperate range: -5～40℃
3. Capacity current: AC<1.5KVA
4. AC: Excitation source< 0.5A
5. Armature power supply< 2A
6. General power control with leakage protection
Electrical Training Equipment
1. Input power: 380V±10% 50Hz; Three-phase, five wires
2. Environment: Ambient temperate range: -5～40℃
3. Capacity current: AC<1.5KVA
4. AC: Excitation source< 0.5A
5. Armature power supply< 2A
6. General power control with leakage protection
Details Introduction
Overview

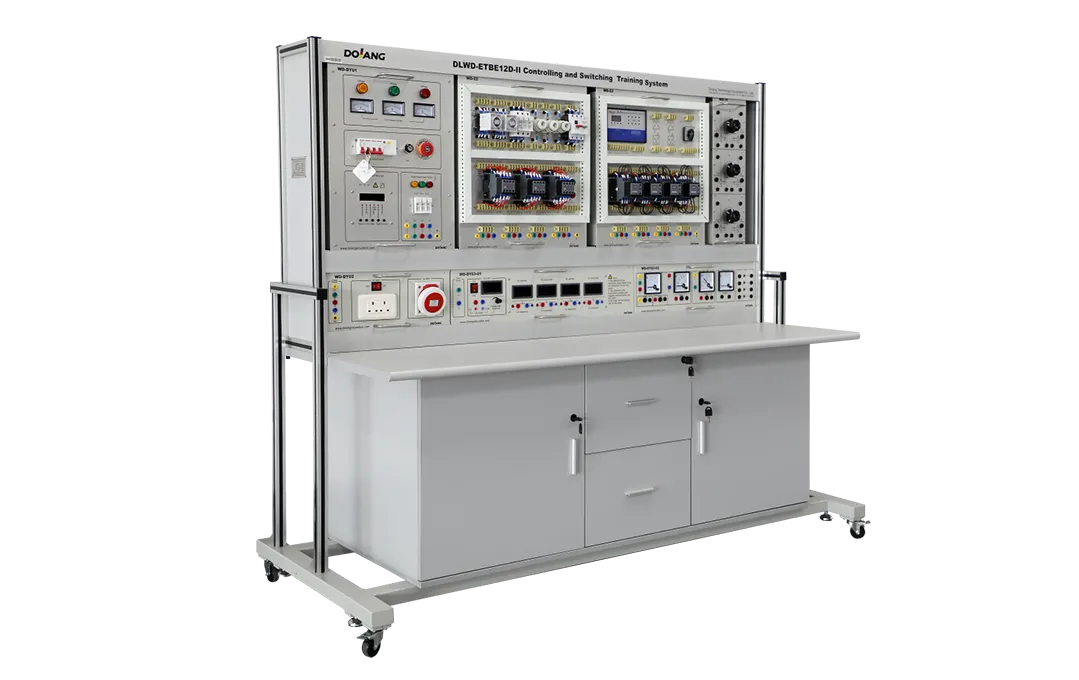

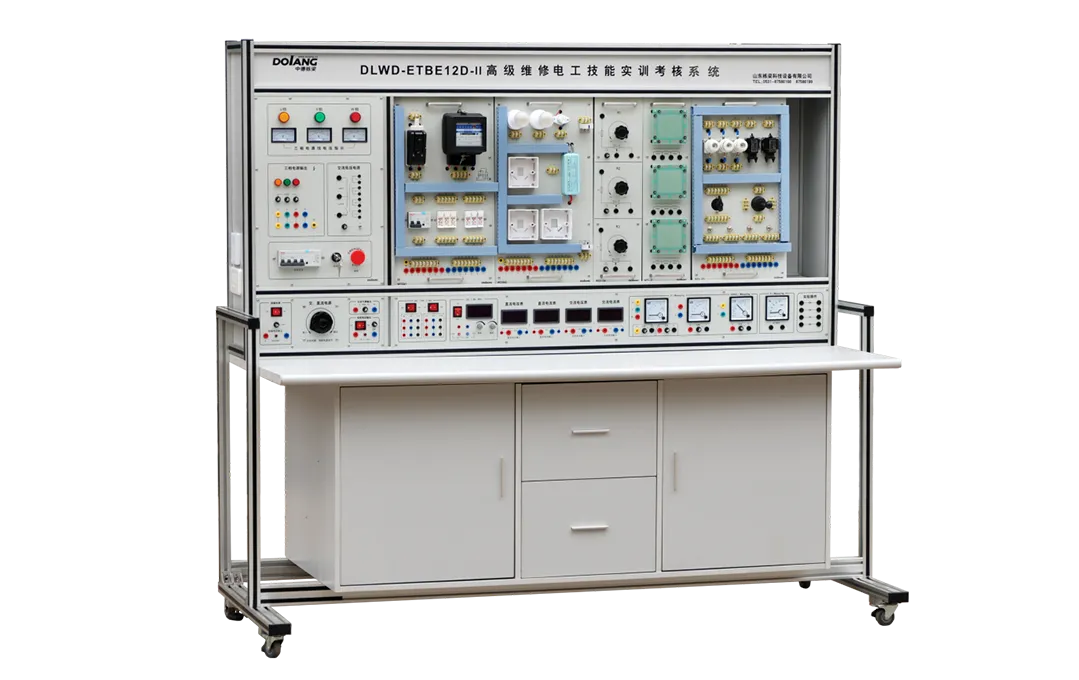

DLWD-ETBE12D-II advanced electrician training device is designed as modular type electrical lab training bench, electrical control circuit training components are installed on the mounting plate, the skill training equipment control circuit and the specially designed motor may simulate various electric drive systems, which can meet the requirements of maintenance, installation, debugging, fault analysis and troubleshooting of electrical technology teaching lab, The device is equipped with a three-phase power output short-circuit cut-off protection function to keep safety of the user, it’s one kind of ideal electrician experimental training bench for primary repair electrician technology and intermediate maintenance electrical technology school training.
Composition
The electrotechnics training equipment is modular type electrical lab training workbench, which includes electrical experiment training bench, Power supply module, contactor, thermal relay, button, indictor lamp and double-side terminal module, circuit breaker, contactor, time relay, button, fuse module, electric magnet, fuse. combination switch, limit switch cross switch module, measurment meter module, lamp module, X62W Milling lathe electrical control circuit module, adjustable resistance module, electic hoist electrical control circuit troubleshooting module, T68 lathe machine electrical control circuit unit, fault assessment training, Three-phase motor, DC motor etc
Training Projects
- Asynchronous motor jog control circuit
- interlocking positive and negative control circuit of Asynchronous motor
- Automatic sequence control circuit
- Star and delta control circuit of asynchronous motor
- dynamic brake control circuit of Asynchronous motor
- Button interlocking three-phase asynchronous motor forward and reverse control circuit
- Positive and negative jog, start control circuit
- Three-phase asynchronous motor stator series resistance step-down start manual control circuit
- CA6140 lathe control circuit
- lathe control circuit
- Electrical machine tools troubleshooting training
- Speed regulation of separately excited DC motor
- AC motor mechanical characteristics test;
- Measurement circuit of three-phase power factor meter
- More infos check with our project manager
Optional type:
DLWD-ETBE12DSTA,
DLWD-ETBE12D730,
DLWD-ETBE12D730M,
DLWD-ETBE12D-I
1. Electric drive training
- Direct start control of three-phase asynchronous motor
- Three-phase asynchronous motor contactor jog control circuit
- Three-phase asynchronous motor contactor self-locking control circuit
- Y-△ start automatic control circuit
- Contactor interlocking three-phase asynchronous motor forward and reverse control circuit
- Button interlocking three-phase asynchronous motor contactor forward and reverse control circuit
- Double interlocking three-phase asynchronous motor forward and reverse control circuit
- Three-phase asynchronous motor dynamic braking control circuit
- Sequence control of three-phase asynchronous motor
- Multi-site press system of three-phase asynchronous motor
- Automatic control circuit of the worktable
- Fluorescent lamp wiring
2. PLC control training
- PLC control motor jog and self-locking control
- PLC controlled motor manual forward and reverse control
- PLC controlled motor with delay forward and reverse control
- PLC control motor start and stop control in two places
- PLC control motor sequence control
- PLC control motor star/delta start automatic control
- PLC control motor star/delta start manual control
3. Inverter control technology training
- The basic operation and parameter setting of the inverter
- Inverter stepless speed regulation
- External terminal jog control
- The inverter controls the motor forward and reverse rotation
- Multi-stage speed selection frequency conversion speed regulation
4. Touch screen screen editing and function debugging
- Basic configuration training project
- Motor Y-△ configuration training project
5. Machine tool assessment training
- CA6140 lathe training instructions;
- X62W milling lathe training instructions;
- DLWW-GX2.0 network intelligent wireless communication evaluation management system operation.
