Electrical Training Equipment

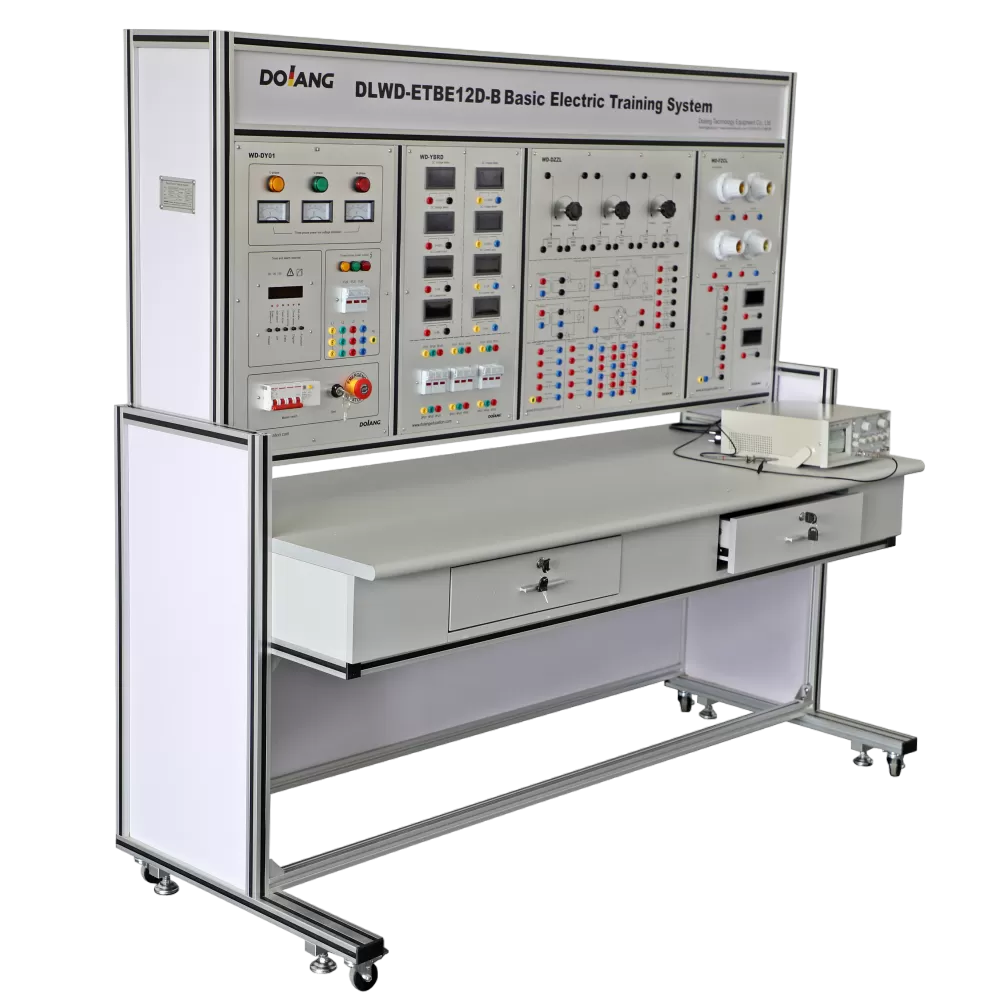

Model: DLWD-ETBE12D-B Basic Electric Training System
1.Input power: three-phase five-wire AC380V ± 10% 50Hz
2.Output power: AC380V ± 10% 50Hz, AC220V ± 10% 50Hz
3.Working environment: -10 ℃ --- 45 ℃, relative humidity: ≤ 95% RH (25 ℃)
4.Device capacity: <1.5KVA
Details introduction
Overview
The vocational electrical teaching workbench includes a variety of electrical training modules. Through the relevant electrical training experiments, vocational training user may familiar with the characteristics of various circuits, to master its control principles and methods, it’s one ideal electrotechnics technology training bench for vocational school students to master the electrotechnics technology knowledge and skills for higher vocational education, vocacation institutions, secondary vocational school and and technical training schools to conduct relevant engineer teaching and skills training assessment.
Configuration
The TVET technical training workbench mainly composed of engineer training modules, training platform, power module, Measuring training module, load Module, Fuse box, Single phase transformer training module, Rectifier module, etc.
Training projects
-The characteristic of reduction of voltage experiment
-The half-wave rectifying circuit experiment training
-The full-wave rectification experiment training
-Measurement of DC current electrical parameter training
-Characteristic of RC filtering
-Characteristic of capacitor filtering
-Experiment of variable load
