DLDS-1214 Electrical Installation Training System

Model: DLDS-1214 Electrical Installation Training System

1. Outline dimension: ladder structure, outer side is established by patch board, and inner side including five simulation metopes.

2. Operation console and tools box

Operation console: 1500(L)X750(W)X800(H)mm

3. Input power: three phase three wires 380V±10%　50HZ

3.1 Working environment: environment temperature range -5～40℃

3.2 Device Capacity: AC＜4KVA

3.3 Safety Protection: leakage protection（working current≤30mA),overcurrent protection, overload protection, emergency stop protection, undervoltage protection

Inquire Now

DLDS-1214 Electrical Installation Training System

Details introduction

Overview

DLDS-1214 electrical installation teaching equipment is special designed for China trial competition of the 44th Worldskills competition, fully confirm with the related standards of WorldSills Competition. This Electrotechnics technology training bench includes a building intelligent control training system, using KNX full digital distributed control system to automate and centralize control and management of various electrical equipment such as lighting, air conditioning, curtains, etc. in the area, to achieve energy monitoring, and not only can effectively manage the building Electrical equipment provides flexible and changeable functions and effects. It can also maintain and extend the service life of lamps and electrical equipment to achieve safety, energy saving, humanization and intelligence.

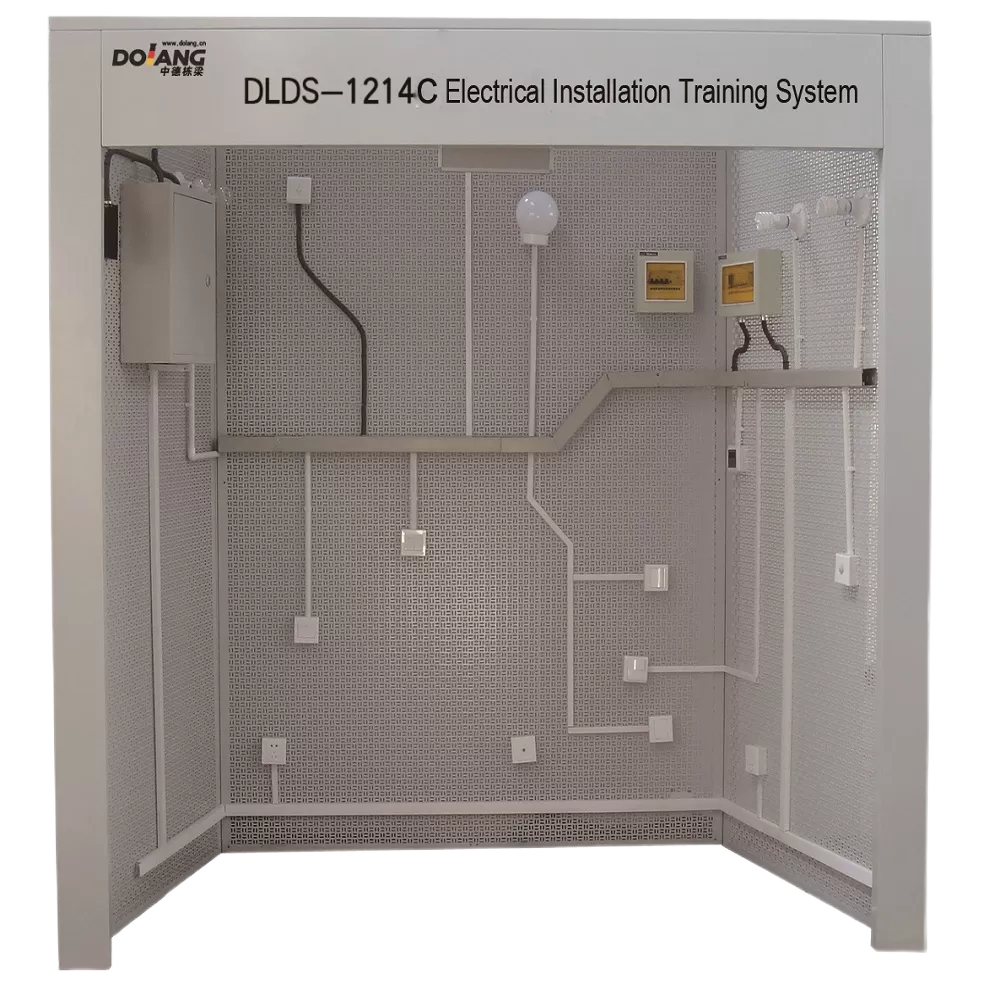

Optional Electrical installation trainer model: DLDS-1214A, DLDS-1214B, DLDS-1214C

Configuration

The building equipment is composed of training platform, Power distribution box, Electrical control box, KNX Building System, Fault test module, control console, devices and consumables etc.

Training projects

According to the project teaching, it mainly completes the training contents as follows::

-Vocational skills training of electrical installation including installation tools usage, testing equipment usage, pipe laying and fixing process requirements

-Control training of Indoor lighting and power distribution, like one switch, two switch and three switch to control one lamp etc

-Electrical motor control training including motor jog control, motor self-locking control, motor manual sequence start, Y-Δ control circui, forward and reverse control circuit, reciprocating control

-KNX installation and wiring training of smart panel, curtain controller, 12-in-1 sensor, dimming module,etc

- Software install and programming training
