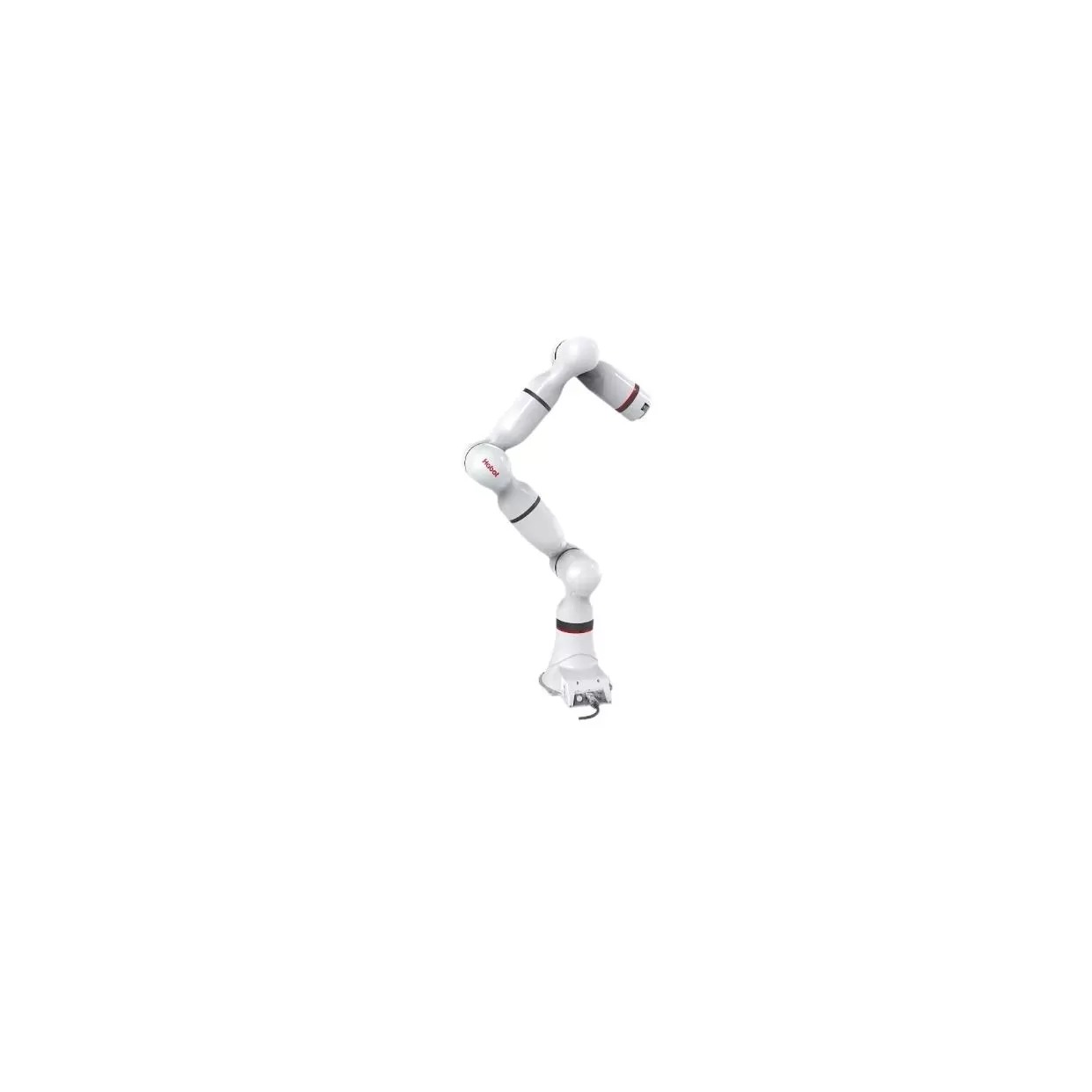

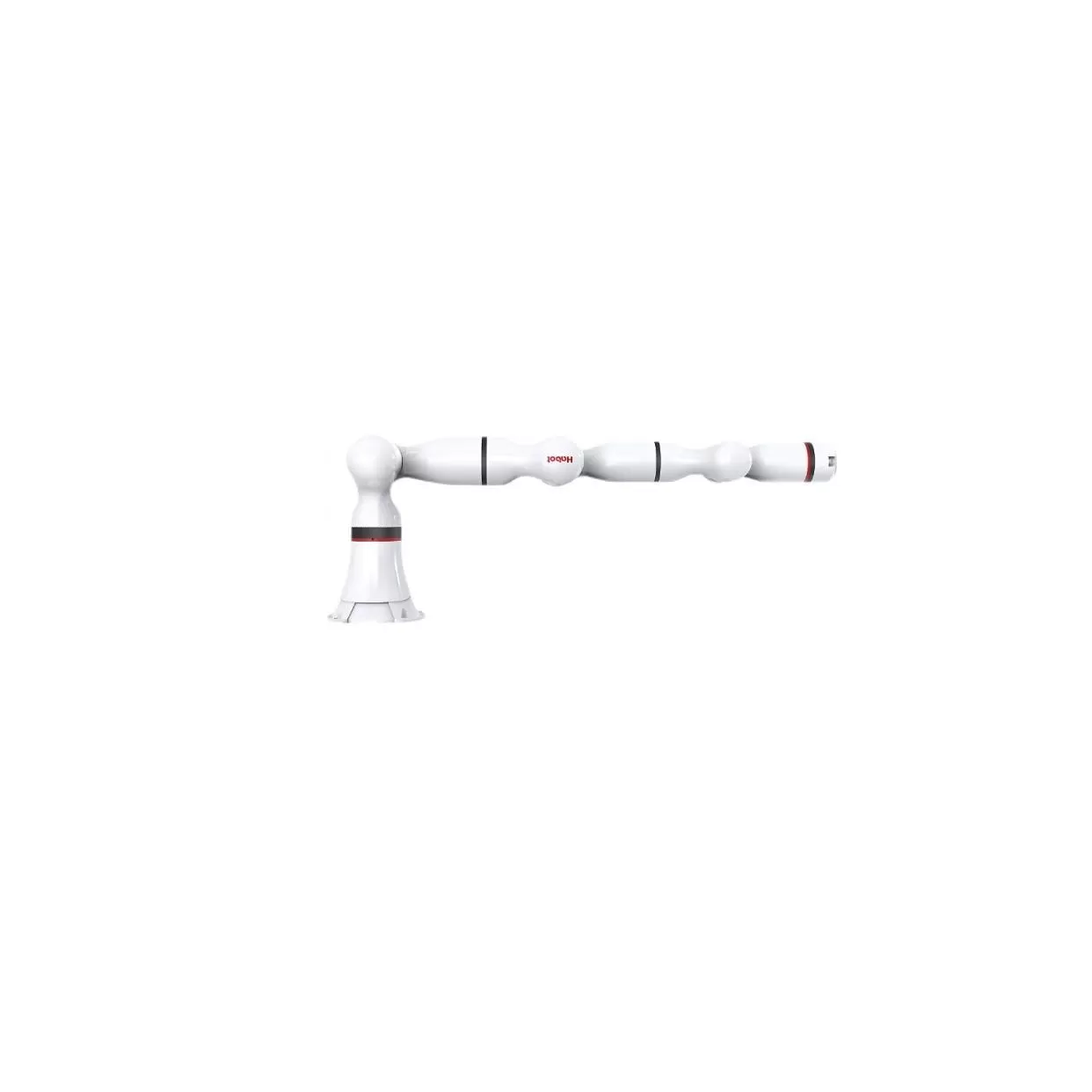

Model: HA7 Pro 7 Axis Collaborative Robot
1. Load: 7kg
2. Arm span: 850mm
3. Degree of freedom: 7
4. Protection level: IP54
5. Power consumption: Regular 300W, Peak 500W
Collaborative Robot
Model: HA7 Pro 7 Axis Collaborative Robot
1. Load: 7kg
2. Arm span: 850mm
3. Degree of freedom: 7
4. Protection level: IP54
5. Power consumption: Regular 300W, Peak 500W
Details introduction
Overview
7 Axis Collaborative Robot, Cobot, Industrial robot system, robotics training bench, Robot application bench, TVET technical training equipment
Equipment Features
| Range of motion | S axis (rotation) | ±170° |
| L axis (lower arm) | ±120° | |
| E axis (elbow) | ±170° | |
| U axis (upper wrist) | ±120° | |
| R axis (wrist rotation) | ±170° | |
| B axis (wrist swing) | ±120° | |
| T axis (wrist rotation) | ±360° | |
| Maximum speed | S axis (rotation) | 180°/s |
| L axis (lower arm) | 180°/s | |
| E axis (elbow) | 180°/s | |
| U axis (upper wrist) | 180°/s | |
| R axis (wrist rotation) | 180°/s | |
| B axis (wrist swing) | 180°/s | |
| B axis (wrist swing) | 180°/s | |
| Maximum torque | S axis (rotation) | 210N.m |
| L axis (lower arm) | 210N.m | |
| E axis (elbow) | 110N.m | |
| U axis (upper wrist) | 110N.m | |
| R axis (wrist rotation) | 110N.m | |
| B axis (wrist swing) | 70N.m | |
| T axis (wrist rotation) | 70N.m |
Training projects
1. Smart & Intelligent--full state feedback, high dynamic force control, zero force drag
2. Smart--7 degrees of freedom design, redundant motion control, precise and flexible
3. Sensitive-Sensitive force perception, one-finger stop, extremely safe
4.Dexterity--no control cabinet design, lightweight body, easy to deploy
5. Handy-accurate reproduction of drag teaching, zero-based graphical operation
