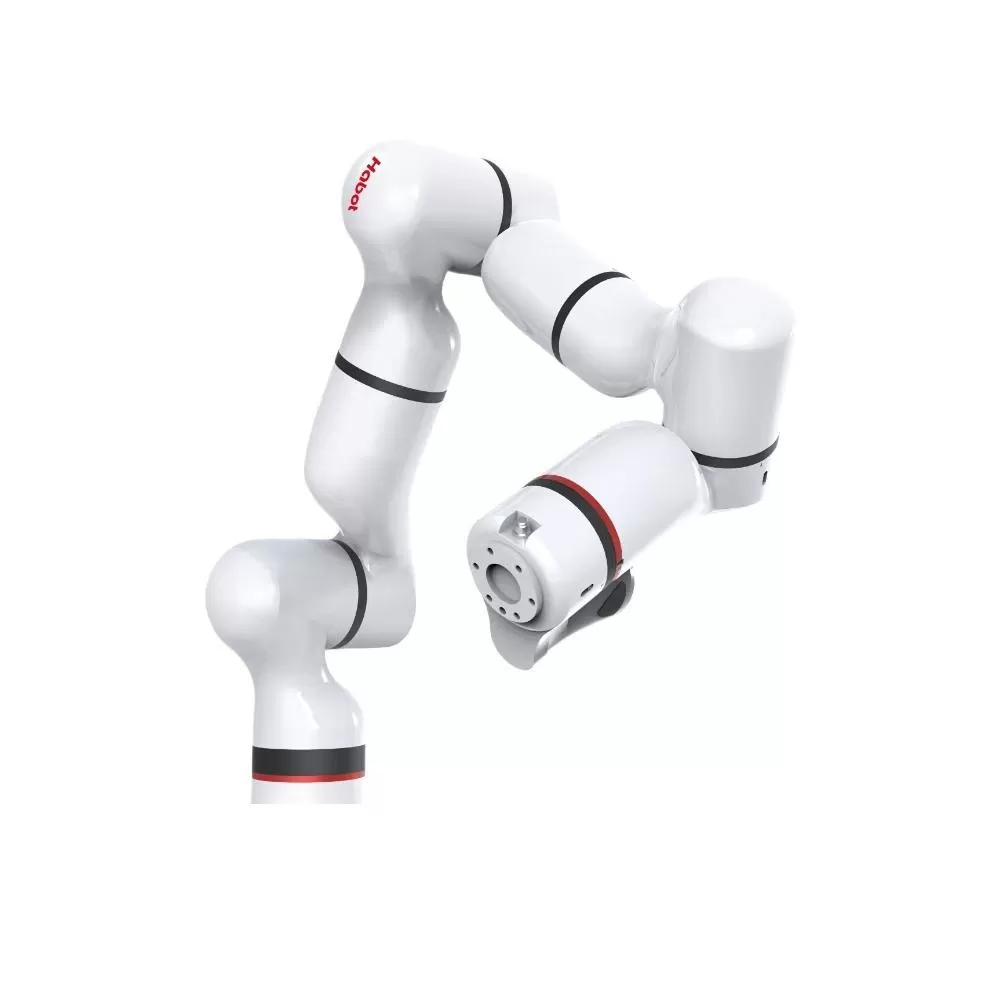

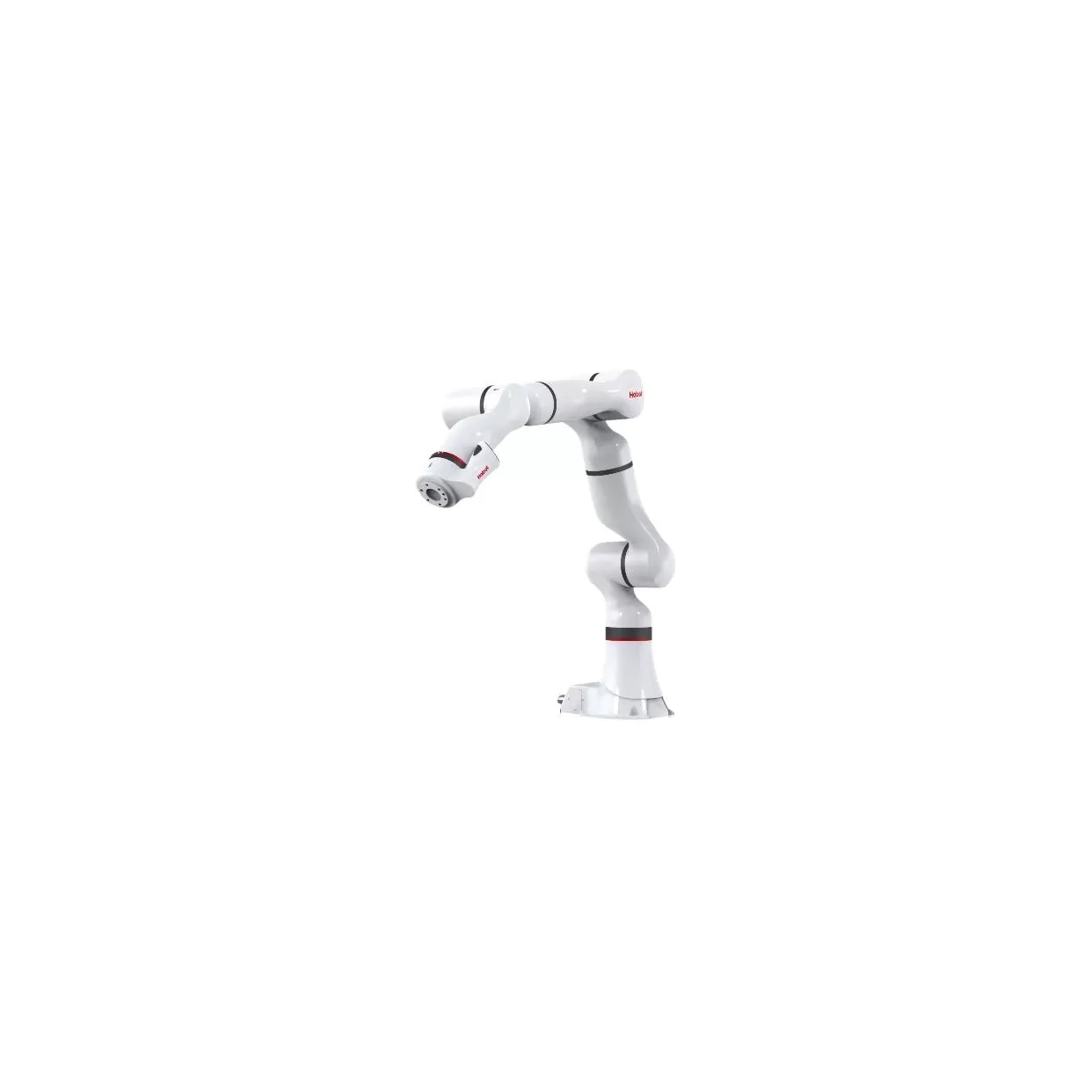

Collaborative Robot
Model: HA3 6 Axis Collaborative Robot
1.The input power: AC220V 士15%
2. The environment temperature:-20 ℃ ~ + 45 ℃
3. Device capacity: < 1 kvA
4. Appearance size: 1668 mm x 805 mm x 1484 mm or so
5. Security protection: with the leakage automatic protection device
Details introduction
Overview
| Motion parameters | axis | Range of motion | Max speed | Max torque | ||||
| A1 | ±170° | 180°/s | 110Nm | |||||
| A2 | ±120° | 180°/s | 110Nm | |||||
| A3 | ±120° | 180°/s | 110Nm | |||||
| A4 | ±170° | 180°/s | 40Nm | |||||
| A5 | ±120° | 180°/s | 40Nm | |||||
| A6 | ±360° | 180°/s | 40Nm | |||||
| freedom | 6 | |||||||
| Payload | 2KG | |||||||
| Arm span | 500mm | |||||||
| Repeat positioning accuracy | ±0.02mm | |||||||
| Protection level | IP54 | |||||||
Equipment Features
1.Lightweight
It makes the robot easier to control and improves the safety.
2.Friendliness
The surface and joints of the robot are smooth and flat, and there is no sharp corner or easy to hurt the operator.
3.Man machine cooperation
It has a sensitive force feedback characteristic, when it reaches the set force, it will stop immediately. After the risk assessment, there is no need to install a protective fence, so that human and robot can work together.
4..Programming is convenient
For some ordinary operators and non-technical background personnel, it is very easy to program and debug.
Training projects
