Building Management Training System

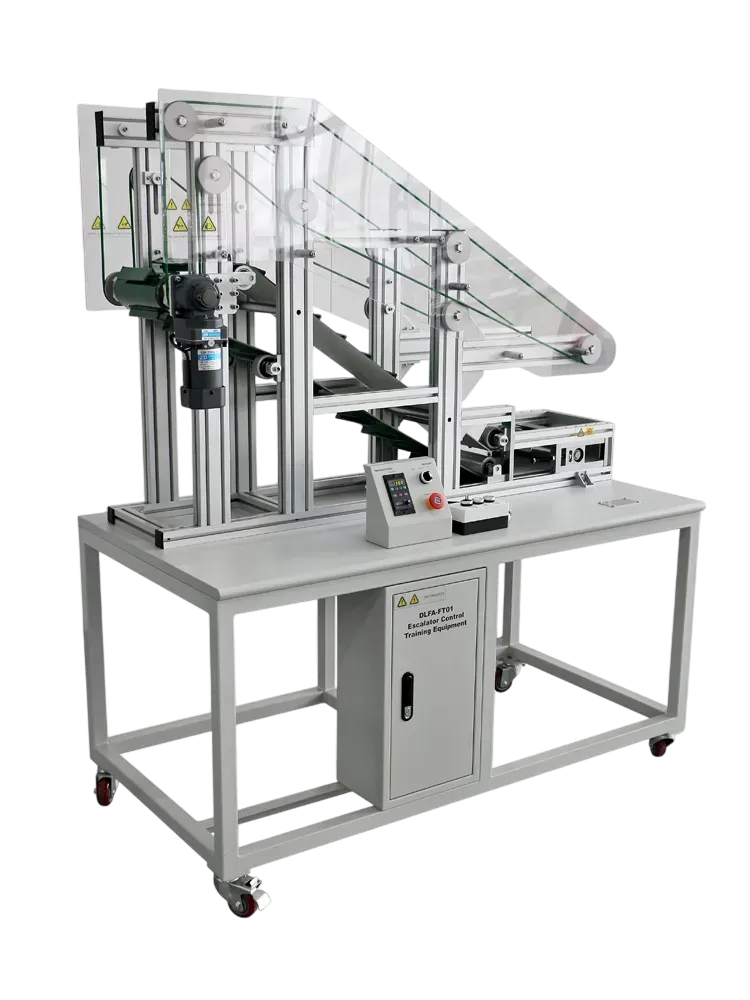

Model: DLFA-FT01 Escalator Control Training Equipment
1. Working power supply: single phase three wire AC220V ± 5% 50Hz, 1kW;
2. Working environment: altitude ＜ 1000m; Temperature: - 5 ℃ ~ + 40 ℃; Humidity: 25% RH ~ 85% RH, no water bead condensation; The ambient air shall not contain corrosive and flammable gases;
3. Lift height of escalator: 550 mm;
4. Inclination: 30 °;
5. Step width: 170 mm;
6. Operating speed: 0.2 M / S;
7. Overall dimension: 1500 × 780 × 1800mm or so
Details introduction
Overview
Escalator teaching bench belong to building training equipment, is an open transportation machinery driven by electricity, which can transport a large number of passengers continuously in a certain direction. The elevator fault troubleshooting teaching model has the advantages of compact structure, safety and reliability, simple and convenient installation and maintenance, etc. it suits for different kinds of vocational training level use.
Through the eleavator skills training in the Escalator teaching model, students from engineering university, vocation college, vocational schools etc can really learn and master the control and structure of the escalator, realize the assessment of students' comprehensive ability.
Configuration
The escalator teaching model console of the training platform which is used to control the automatic operation of the escalator, including metal frame platform, transmission device, driving device, handrail device, step, emergency stop button, electrical control system, etc.
The electrical control part of the escalator training system adopts AC speed regulation control system and is equipped with corresponding fault point settings
Training projects
- Practical training on basic safe operation and use of escalator;
- Escalator safety circuit fault finding and troubleshooting training;
- Escalator maintenance circuit fault finding and troubleshooting training;
- Escalator power circuit fault finding and troubleshooting training;
