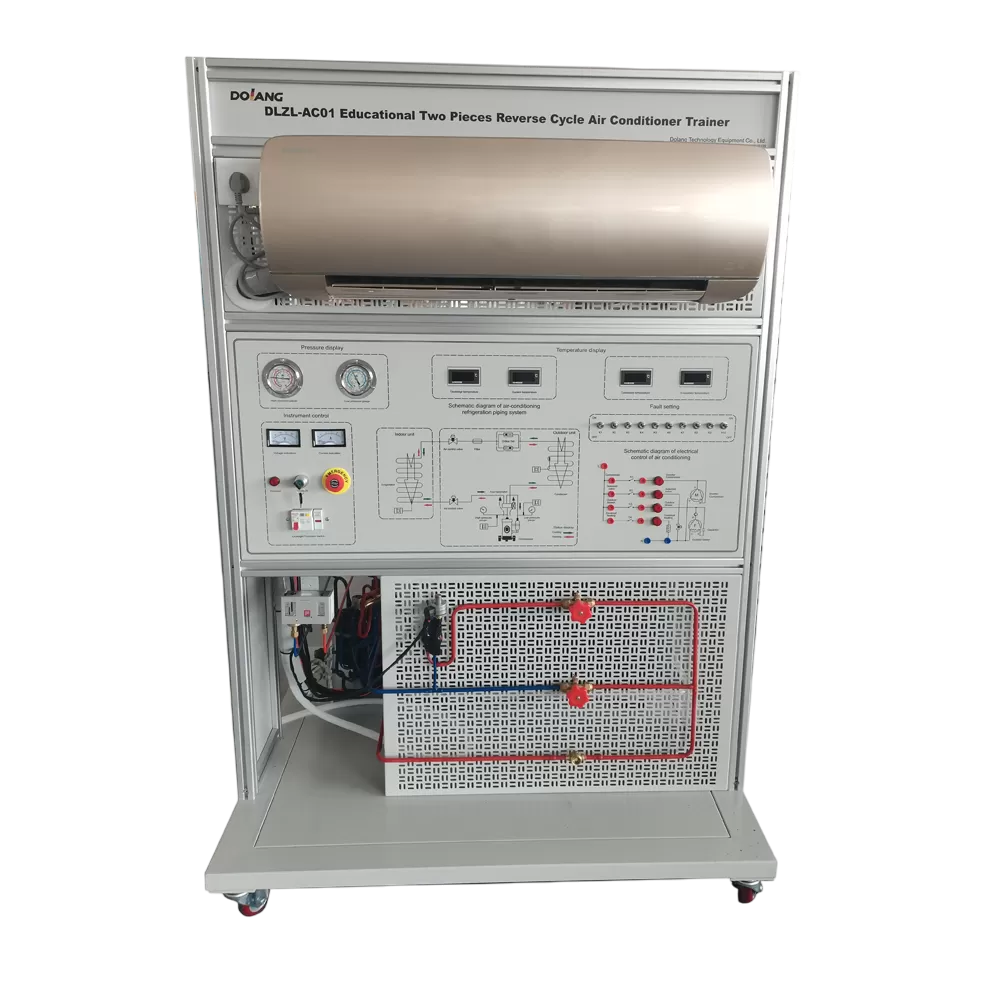

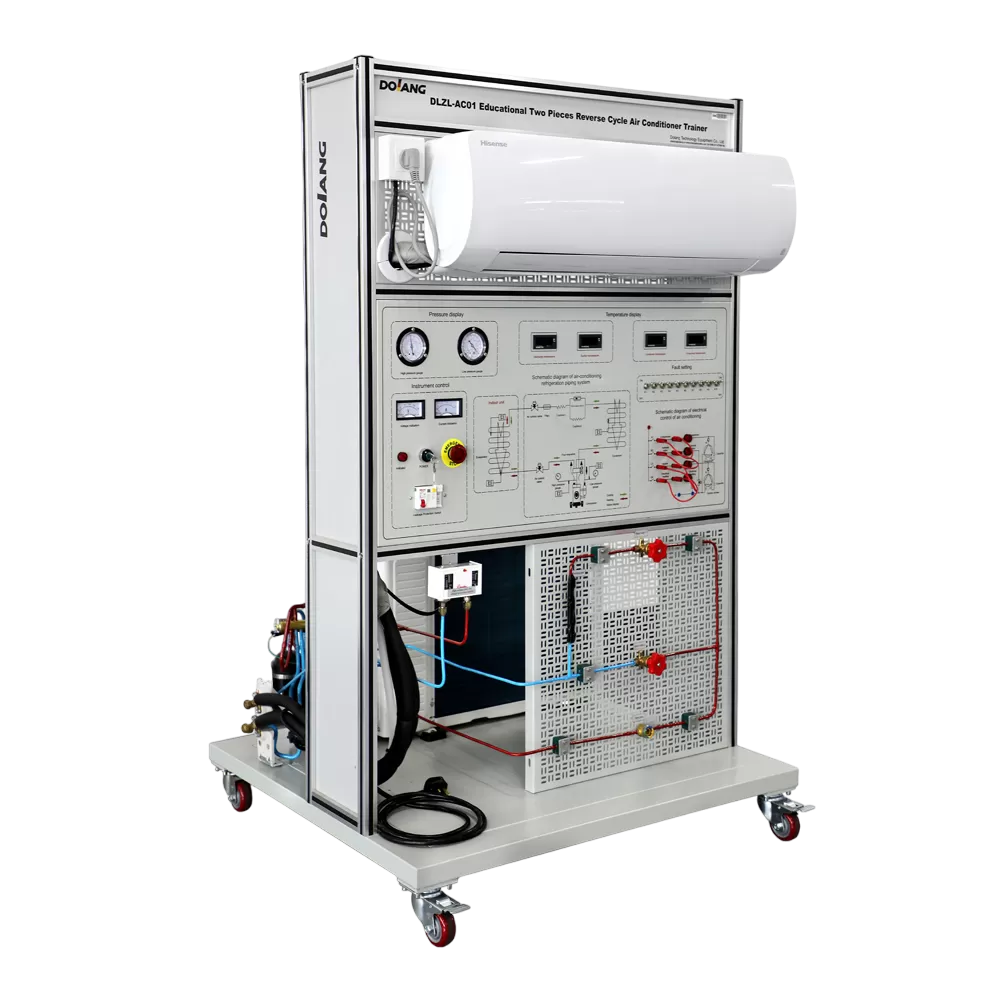

DLZL-AC01 Split Type Air Conditioning Training System

-Air conditioning trainer device visually demonstrates the system structure and working principle of the air conditioner, which is convenient for teaching demonstration and understanding of students' knowledge of textbooks.

-The training device is provided with a fault simulation function, provides a wiring area of outdoor execution components, and provides an applied training project with strong training.

-A manual throttle valve and an automatic throttle device are provided on the refrigeration system to simulate the cooling mode and fault setting in different environments.

-On the back side, the structural principle of the entire refrigeration system and the actual objects of the main components can be observed. The corresponding components are named. -The sight glass is provided to observe the state of the refrigerant. The external leakage fittings and components are clearly placed and labeled. Easy to identify. Students do not need to disassemble the outdoor unit and can clearly see each component.

-The front panel provides a printed schematic of the refrigeration and circuitry for guidance.

Section 1 Refrigeration System Experiment

- Understanding the split air conditioning equipment components

- Refrigeration cycle operation

- The effect of indoor unit covered with dust on the refrigeration cycle

- The effect of the outdoor machine covered with dust on the refrigeration cycle

-The effect of the throttle valve on the refrigeration cycle

-The effect of high and low pressure series gas on refrigeration cycle

Section 2 Electrical failure test

-Indoor unit total power failure (K1)

-Power failure of external machine control board (K3)

-Compressor failure (K2)

-Four-way valve failure (K4)

-Outer fan failure (K8)

-Internal fan failure (K6)

-Up and down wind failure (K7)

-Troubleshooting of the indoor thermistor sensor (K5)

-Electric heating fault (K10)

-Indoor unit panel display failure (K10)
