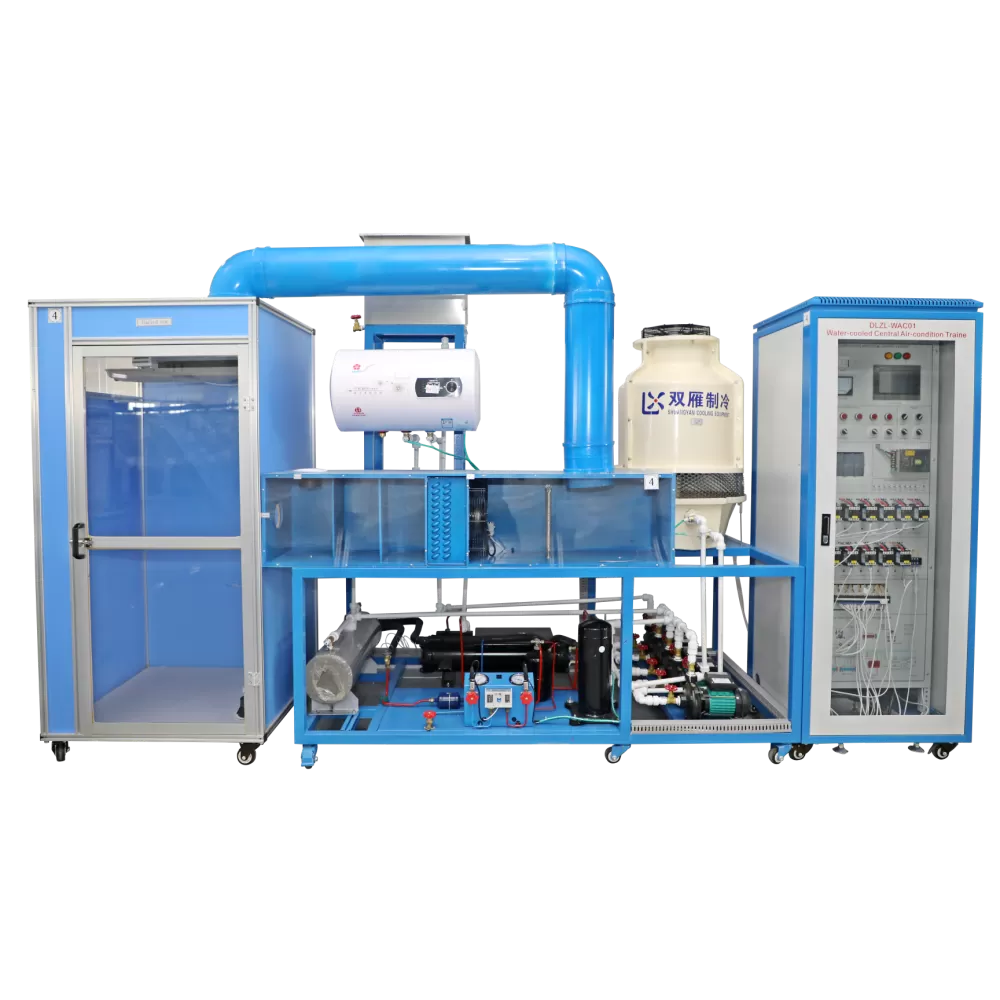

DLZL-WAC01 Water-Cooled Central Air Conditioning Training Device

1. The DLZL-WAC01 water-cooled central air-conditioning training device pursues a high degree of authenticity in design, ensuring that students can experience operating conditions that are almost the same as actual work in a simulated environment. The open stainless steel frame structure not only gives the equipment a sturdy and durable characteristic, but also facilitates students to observe and operate various components during the training process.

2. Open design: The layout of the various components of the DLZL-WAC01 water-cooled central air-conditioning training device has been carefully designed to ensure the integrity of the system while taking into account the convenience of operation. Students can easily access key components of the refrigeration system, such as compressors, evaporators, condensers, etc., which helps them understand the functions and working principles of these components in practice. In addition, the system's pipeline layout is clear, which makes it easier for students to track the flow path of the refrigerant, so as to better grasp the entire process of the refrigeration cycle.

3.Real restoration: The DLZL-WAC01 water-cooled central air-conditioning training device pursues a high degree of authenticity in design, which is highly consistent with commercial and household central air conditioners in real life, and the training device system is equipped with a simulated fault setting function to set faults in the refrigeration system and electrical system. Improving students' analytical ability through specific phenomena is conducive to students applying theories to practice and cultivating their practical skills.

4. Automatic protection device: It is equipped with a current type leakage protection device. When the leakage current to the ground exceeds a certain value, it will trip and cut off the power supply; and there is a thermal protection device to protect the compressor from overheating and overload.

-  Central air conditioning structure and equipment working principle;

-  Training and assessment of central air conditioning start, operation, stop, and debugging technology;

-  Central air conditioning operation, adjustment operation training and central air conditioning operating conditions, and various operating parameters detection and analysis;

-   Central air conditioning control principle training;

-   PLC advanced programming and PLC installation, wiring and debugging training;

-   Matching pressure transmitter, temperature sensor and corresponding A/D conversion function module, which can collect and monitor the operating parameters of the entire central air conditioning;

-  Adopt configuration technology to realize animation display of central air conditioning operation, operation data display, real-time monitoring, curve analysis, historical record display, alarm, printing configuration and other functions;

-  Fault judgment and equipment fault elimination training;

-  Application and training of data acquisition technology;

-  Sensor and transmitter installation and use training.

-  Power distribution and control system installation methods and standards

-   Common problems of refrigeration system

-   Common problems of control system

-  Common problems of power distribution system

-   High voltage protection training

-  Communication circuit training
