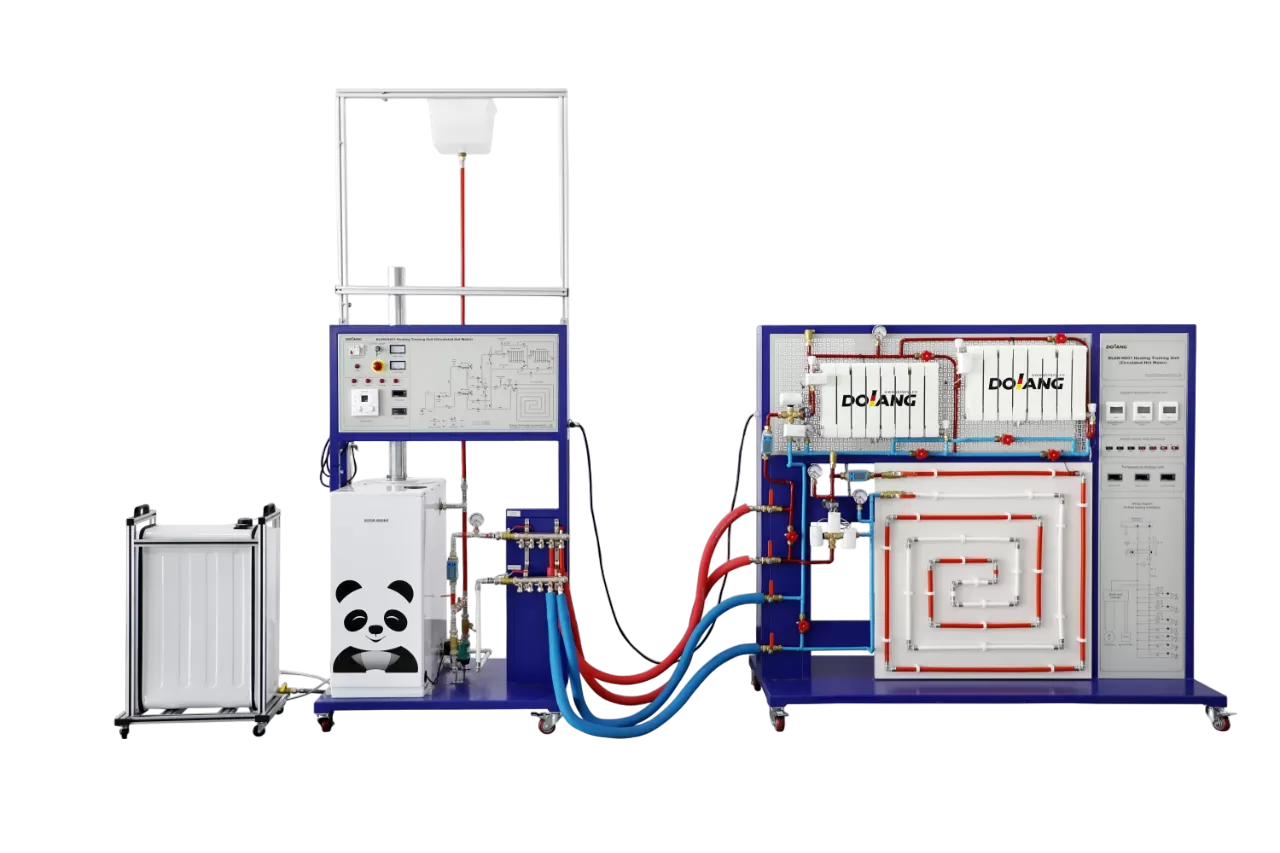

DLGN-HS01 Heating Training Platform

Model: DLGN-HS01 Heating training platform

-Power supply: single-phase 220V + 10%, 50Hz, 16A;

-Casters: 4, 2 with brakes.

Inquire Now

Details introduction

Equipment Overview

DLGN-HS01 Heating Training Unit (Circulated Hot Water) is modular, comprehensive training system with the latest technology of industrial hot water heating equipment and hot water production for domestic usage. The hvac training equipment incorporates the latest technologies of microprocessor zone control for control of real or simulated individual room temperatures by controlling real or simulated room temperature.

Equipment Features

(1) Motorized zone control valves, all major components from main boiler to radiators include real industrial equipment.

(2) The thermal heating training system provides comprehensive training in all major aspects of hydronic heating, including clearly labeled and detailed components, detailed schematic diagrams of piping and control systems, and documentation of all components.

(3) Room temperature simulation

(4) The main boiler is connected to the various modules by hoses and shut-off valves, so the modules can be easily isolated and replaced without water leakage.

(5) fuel system inspection and filling procedure, water system inspection, filling and draining procedure, electrical system inspection, system start-up procedure.

Training Projects

-Identify the Heating System Components

-Basic Knowledge of Fuel Boilers

-Practical Training 3 Heating Equipment Normal Operation

-Single Radiator Operation (Up and Down Control)

-Individual Radiator Operation (Down in And Out Control)

-Two Radiator Running Test

-Ground Heating Module Operation Test

-Parallel Single-Tube System Pipe Layout Test

-Single-Pipe In, Two-Tube Back System Line Layout Test

-Double-Pipe In, Single-Tube Back System Line Layout Test

-Direct Return System Line Layout Test
