Model: DLZL-DAT01 Data Acquisition System Air Conditioning Training System
Power supply: single-phase 220V±10%, 50Hz, 16A;
Test bench: Movable bench with four casters (two with brakes and two without brakes).
Air Conditioning and Refrigeration Training Equipment
Model: DLZL-DAT01 Data Acquisition System Air Conditioning Training System
Power supply: single-phase 220V±10%, 50Hz, 16A;
Test bench: Movable bench with four casters (two with brakes and two without brakes).
Details introduction
Equipment Overview

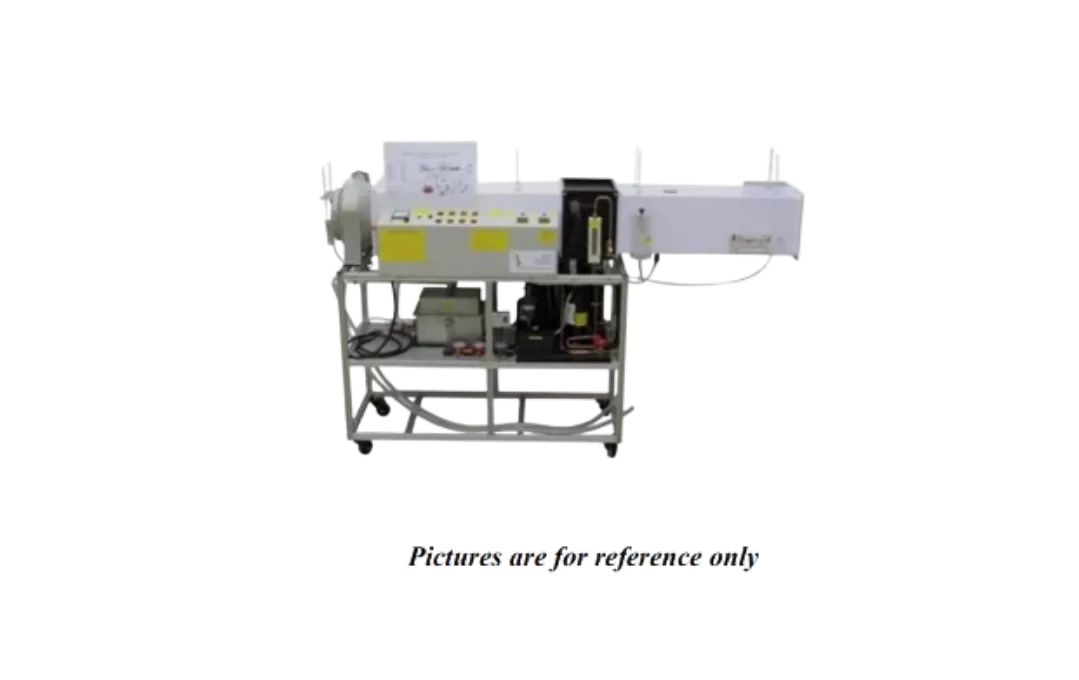

DLZL-DAT01 data acquisition system air conditioning training machine is mounted on a movable workbench, all refrigeration components are clearly visible and the control elements are simple and convenient to operate . The supply air moves through the ventilation duct, which is made of metal pipes and equipped with transparent glass to facilitate the observation of the air conditions at multiple monitoring points along the duct.
The ventilation duct contains important components such as hair dryers, heating devices, humidifiers, refrigeration evaporator devices, temperature sensors, humidity sensors, wind speed sensors, etc., providing diversified functions and learning experiences for practical training. Such a system can not only simulate the ventilation and air conditioning process in the actual environment.
Refrigerant: R134a or equivalent.
Equipment Features
1.The training unit is constructed with a removable steel workbench. The electrical components and refrigeration components are neatly arranged on the unit for easy understanding. The refrigeration circuit is silk-screened on the front panel . The refrigeration lines are color-coded red and blue to indicate the status of the refrigerant.
2.Instrument panel: Circuit breaker and residual current protection device , voltmeter, ammeter , indicator lights , key selector switch , digital temperature gauge , clear and color-coded system diagram and connection schematic.
3.Information collection system: After the system is assembled, the display screen can display the data of the refrigeration system and electrical system, including voltage, current, frequency, power, high and low pressure, time and other values. It also includes the system schematic diagram, which can clearly show the system operation data.
Training Projects
- Central air conditioning structure and equipment working principle;
- Training and assessment of central air conditioning start, operation, stop, and debugging technology;
- Central air conditioning operation, adjustment operation training and central air conditioning operating conditions, and various operating parameters detection and analysis;
- Central air conditioning control principle training;
- PLC advanced programming and PLC installation, wiring and debugging training;
- Matching pressure transmitter, temperature sensor and corresponding A/D conversion function module, which can collect and monitor the operating parameters of the entire central air conditioning;
- Adopt configuration technology to realize animation display of central air conditioning operation, operation data display, real-time monitoring, curve analysis, historical record display, alarm, printing configuration and other functions;
- Fault judgment and equipment fault elimination training;
- Application and training of data acquisition technology;
- Sensor and transmitter installation and use training.
- Power distribution and control system installation methods and standards
- Common problems of refrigeration system
- Common problems of control system
- Common problems of power distribution system
- High voltage protection training
- Communication circuit training
