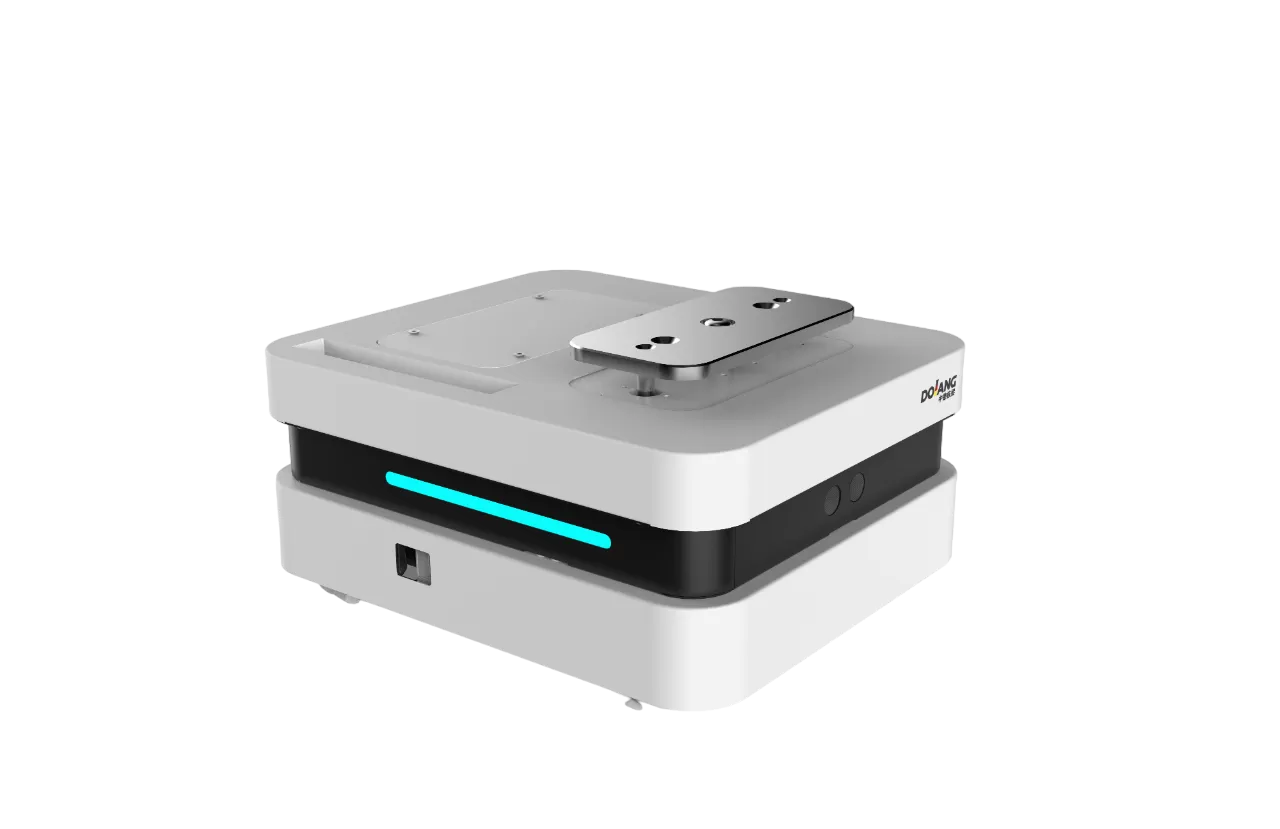

Model: DLRB-342910 Desktop AGV Automatic Navigation Vehicle
1. Size: 340*290mm
2. Weight: ≤15kg
3. Load: ≥5kg
4. Working voltage: 12V
5. Charging method: external charger
Model: DLRB-342910 Desktop AGV Automatic Navigation Vehicle
1. Size: 340*290mm
2. Weight: ≤15kg
3. Load: ≥5kg
4. Working voltage: 12V
5. Charging method: external charger
Details introduction
Overview
AGV is the abbreviation of automated guided vehicle, It refers to the transport vehicle equipped with electromagnetic or optical automatic guidance device, which can drive along the specified guidance path, has safety protection and various load transfer functions, and does not need driver in industrial application. It uses rechargeable battery as its power source. Generally, the route and behavior can be controlled by computer, or the route can be set by electromagnetic path following system.
Equipment Features
(1) High degree of automation;
It is controlled by computer, electronic control equipment and laser reflector.
When auxiliary materials are needed in a certain link of the workshop, the staff will input relevant information to the computer terminal, and the computer terminal will send the information to the central control room, and the professional technicians will send instructions to the computer. With the cooperation of the electronic control equipment, this instruction will be finally received and executed by AGV - the auxiliary materials will be sent to the corresponding place.
(2) Beautiful, improve the degree of appreciation, so as to improve the image of the enterprise.
(3) Convenient, reduce the floor area; AGV car in the production workshop can shuttle back and forth in each workshop.
Training projects
Navigation mode | Magnetic stripe navigation |
way to control | Single-chip motion control/controller centralized scheduling |
With function | Fully automatic/semi-automatic/manual |
Walking direction | Forward, backward, rotate in place, turn left and right |
Communication function | WIFI wireless communication |
Drive way | Mecanum wheel omni-directional drive |
motor | DC gear motor/DC12V |
Carrying capacity | ≥3kg |
Work often | ≥4 hours |
Power supply | DC12V lithium battery |
Security | Ultrasonic sensor |
Running speed | 20RPM-40RPM adjustable |
